WAS 228 Series Rear light 5 functions and reflector Left

WAS 228 Series Rear light 5 functions and reflector Left

Rear light in a special design, for those who want something different.
This multifunctional compact rear light is not universal and it is therefore important to order both the right-hand and left-hand variant. This one is the left version.
The lamp has 5 functions and a reflector.
Of course it is multi-voltage and equipped with E-mark.

Functions:

1. Rear light + reflector
2. Brake light
3. Reversing light
4. Fog light
5. Turn signal

Specifications:

• Version: left
• Voltage: 12-24V multi-voltage

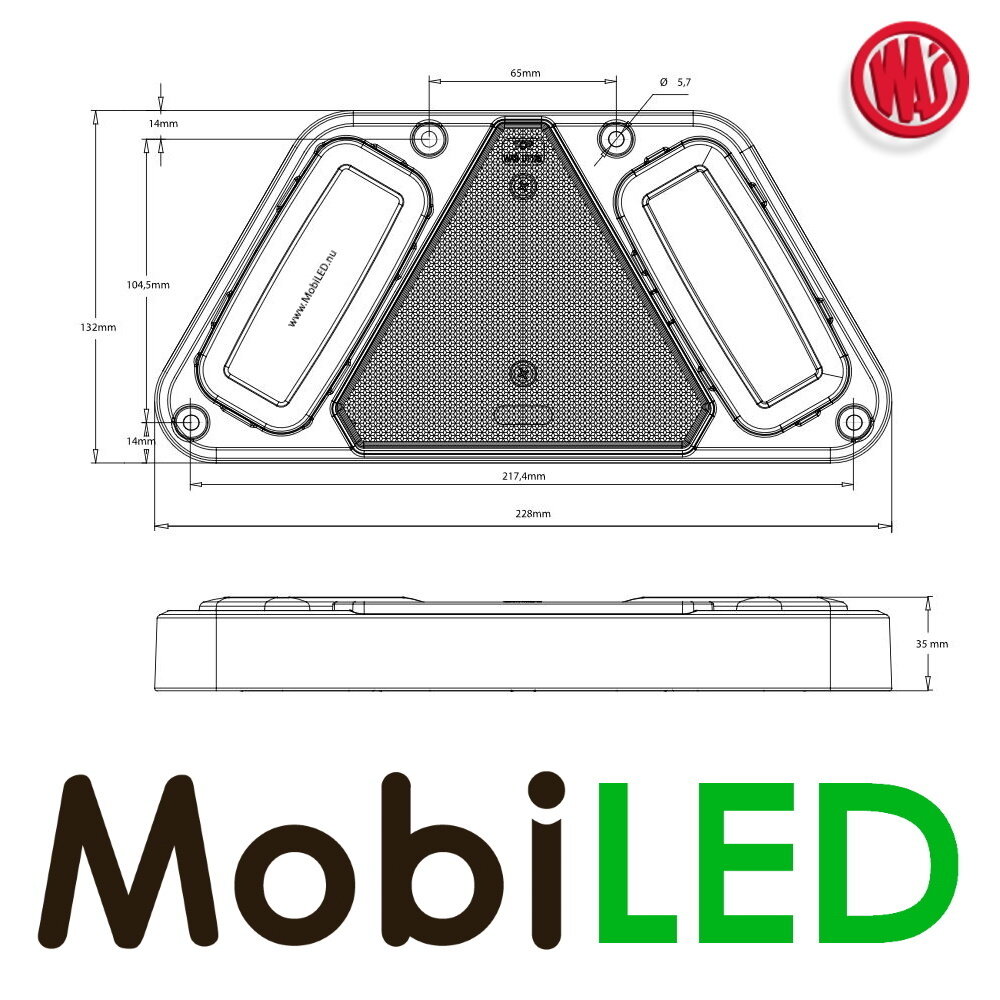

• Dimensions: 228 x 132 x 35 mm
• Bolt spacing: 65 (top) and 217.4 (bottom) mm
• Rating: IP69
• Certification: E-mark
• Number of functions: 5 + reflector
• Cable length: 2 m

Connection diagram:

• White= mass
• Black= rear light
• Red= brake light
• Gray= reversing light
• Blue= fog light
• Yellow= turn signal

Homologation:

• w228-r-s1-2a-ar-f-1495.pdf
