WAS 693 work lamp and reversing lamp E-approved 12-24 volt

WAS 693 work light and reversing light

12 x 17 Watt work lamp and 12 x 2 Watt reverse light in 1 lamp.
Equipped with European R23 type approval and radio suppressed.
The lamp is multi-voltage and can be mounted in various ways.

Specifications

• Number of LEDs 12
• +/- 2400 Lumen
• 10-35 volts
• 2.5 m connection cable
• Dimensions 101 x 148 x 78mm
• Polypropylene housing
• E20-R23, R10 approval
• IP 66/68

Homologation

• 693
• E20-10R
• E20-grupowa-ext01

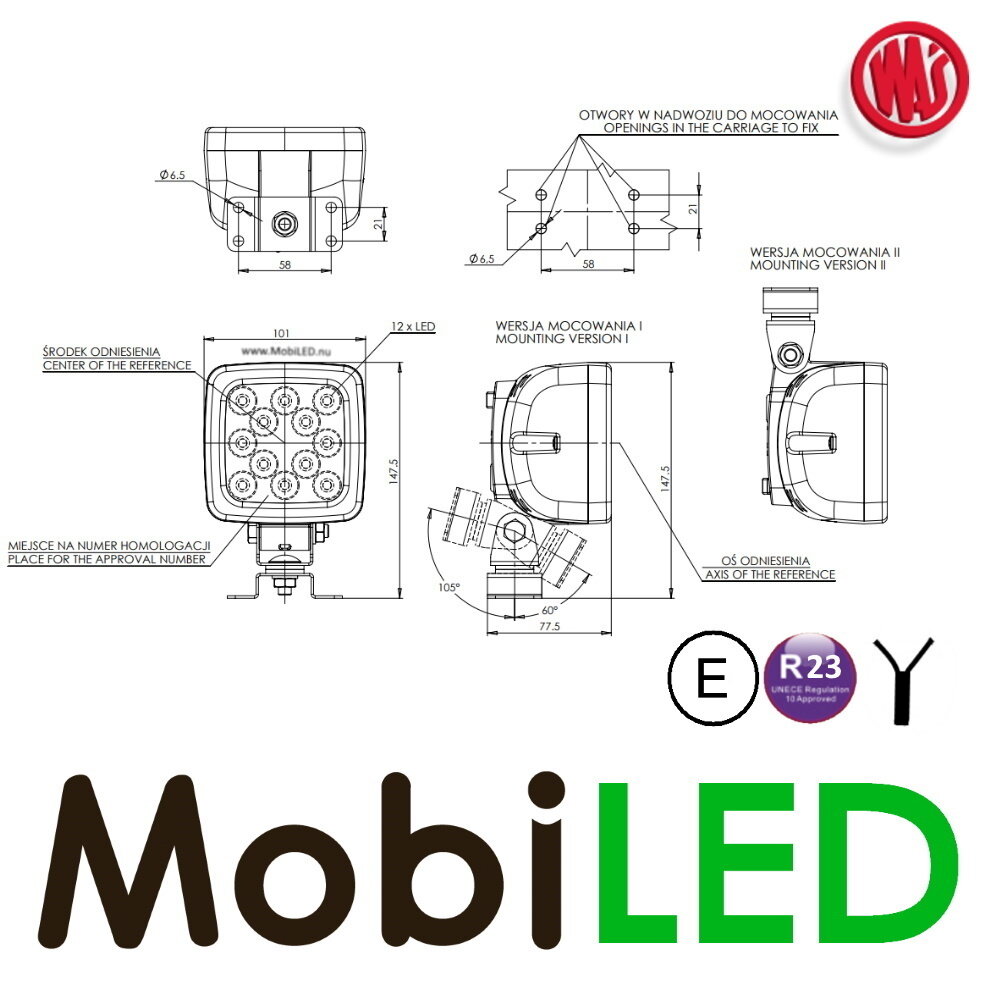

Technical drawing

• Technical drawing
