Universal LED headlight heated right E-mark

LED headlight heated E-mark (right)

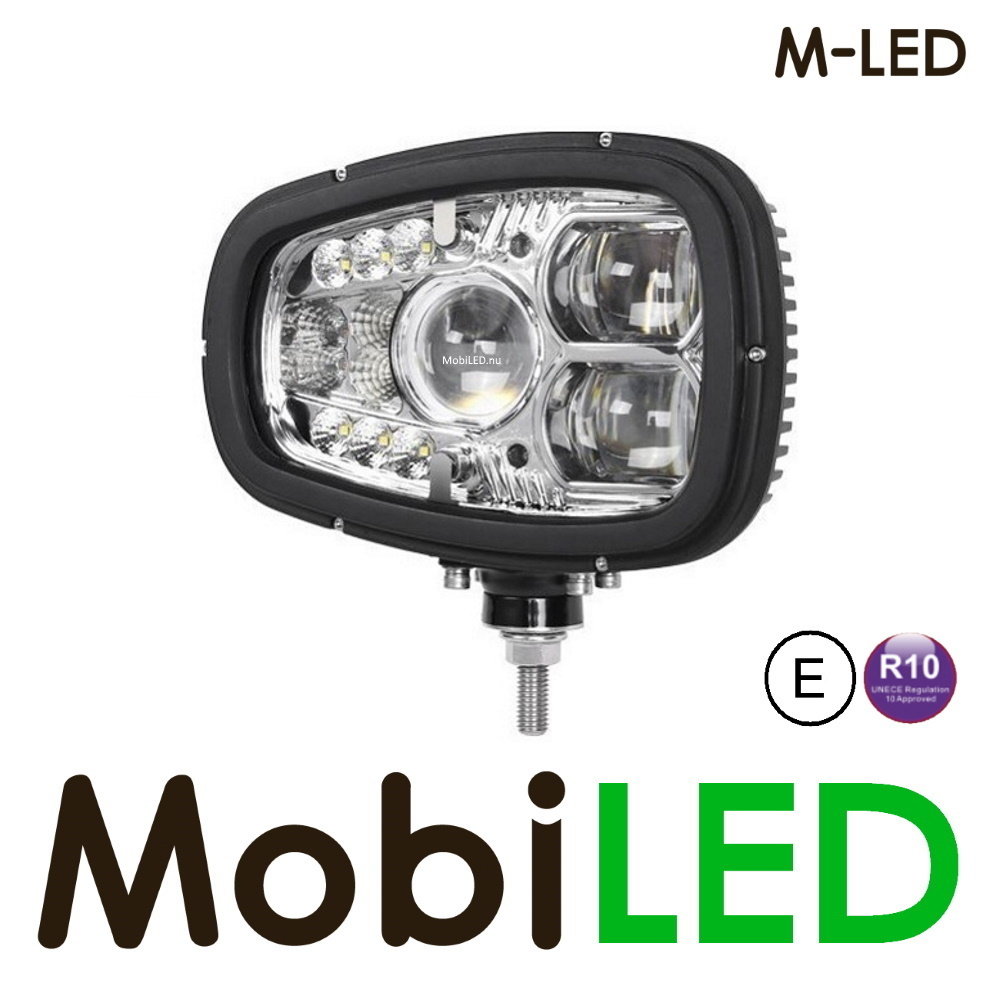

LED headlight for your telehandler, shovel, forklift, snowplow or other implement. Low beam, High beam and turn signal which is also visible from the rear. This universal headlamp is also equipped with heating and is therefore very suitable for winter services and snowploughs. An upgrade to LED results in a much higher light output, less maintenance and a contemporary look. Naturally, this lamp is provided with Homologation, ECE E-Mark R112, R10, R6, R7. The aluminum housing guarantees good protection and heat conduction.

Please note when ordering: The combination LED headlight is available in Left and Right.

Specifications:

• Power: 60 watts
• Voltage: 12-36 volts
• Lumen: high 2500lm, low 1200lm
• Light color: 6500K
• LED: CREE
• Functions: high beam, low beam, position light, turn signal (front / rear).

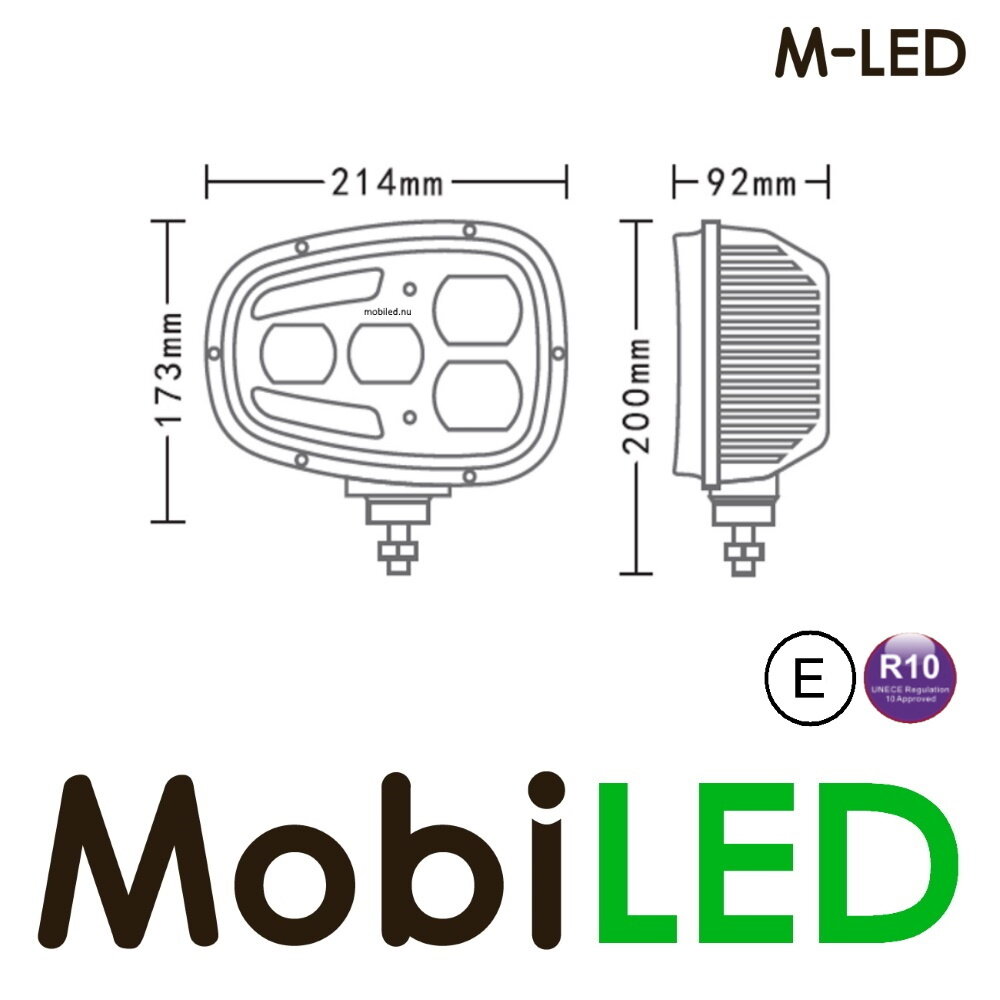

• Size: 214 x 173 x 92 mm
• Housing: aluminum
• Lens: polycarbonate, protective cover (glass heated)
• Mounting bracket: stainless steel
• Lifespan: 30,000 hrs
• Working temperature: -40 / 80 ° C

Connection diagram:

• White = Mass
• Blue = position light
• Black = turn signal
• Brown = low beam
• Red = high beam
