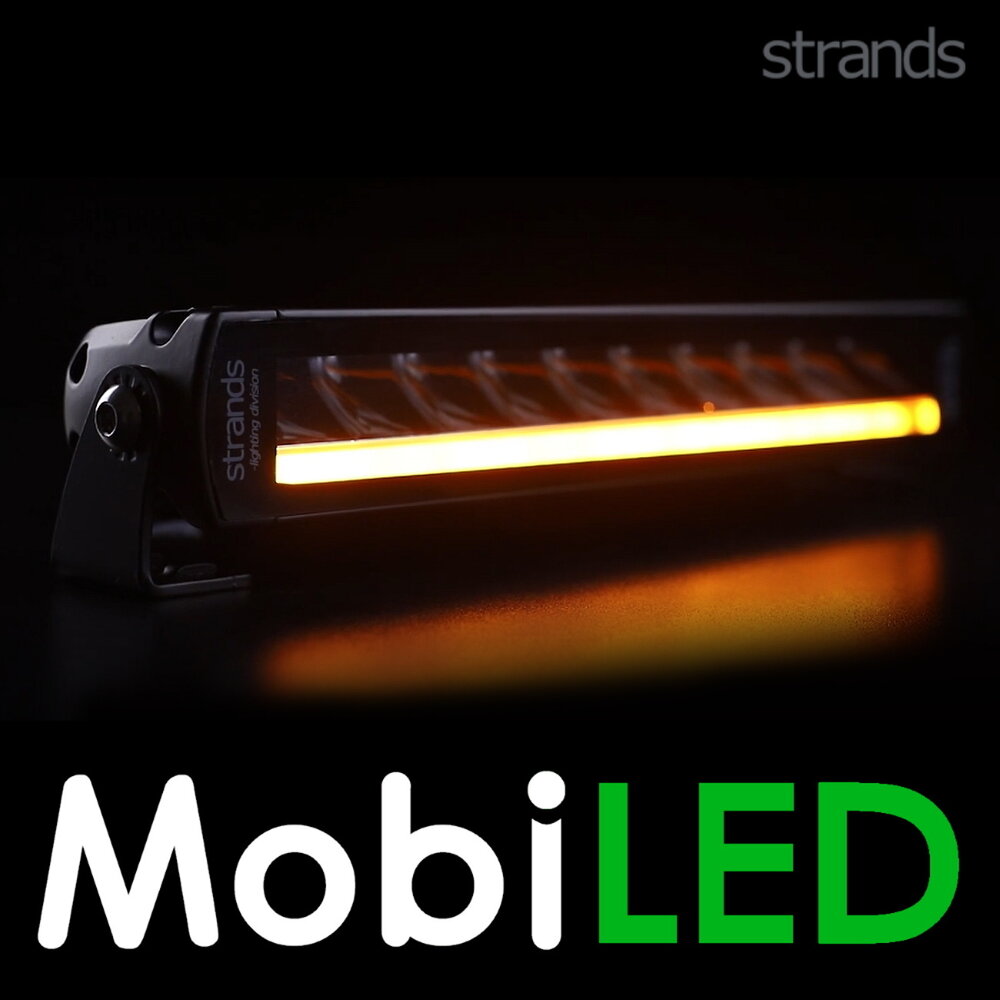

Strands Siberia Single Row 12 inch

Strands Siberia Single Row 12”

The Strands Siberia Single row series is made for your truck. Cutting-edge design in combination with revolutionary features. Slim, dark and sophisticated. The lens extends from edge to edge. All models are E-approved.

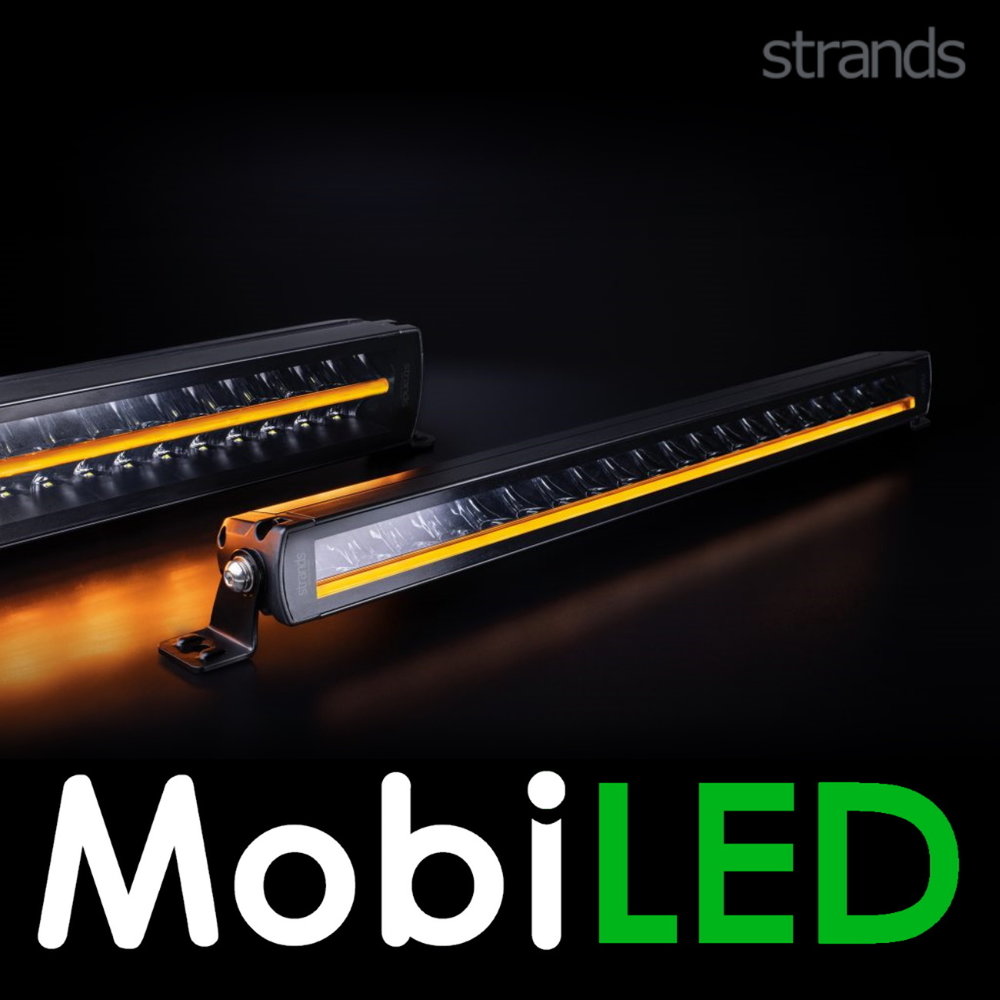

The series comes in five sizes, 12", 22", 32", 42" and 50". The light pattern is increasing with size.
Siberia is also available in a double-row model, also in five sizes.

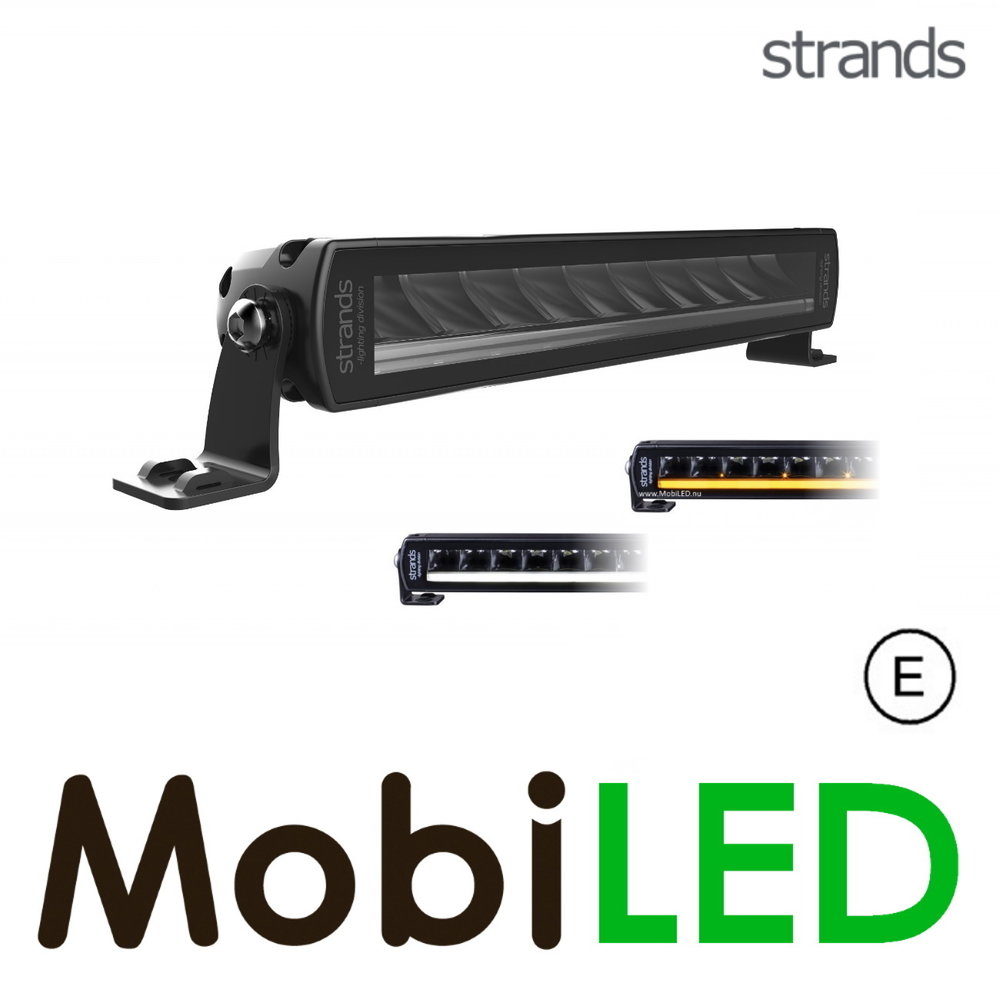

The unique dual position light lets you express your style and personality by choosing between orange and white light. This option is standard on every bar, you could also connect both to different circuits.

Siberia enhances the appearance of your vehicle and gives you efficiency at completely new levels on all roads and in all conditions. A brand new type of LED bar, created for those who are looking for the best.

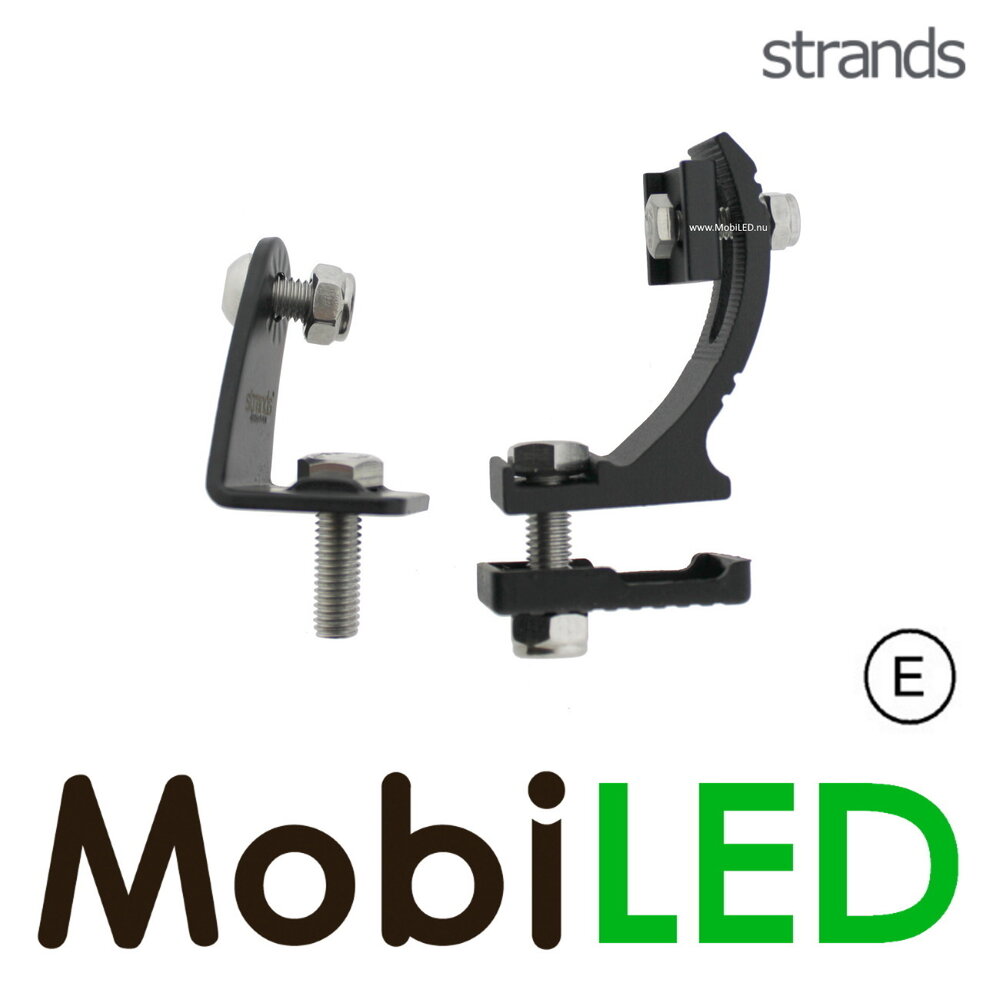

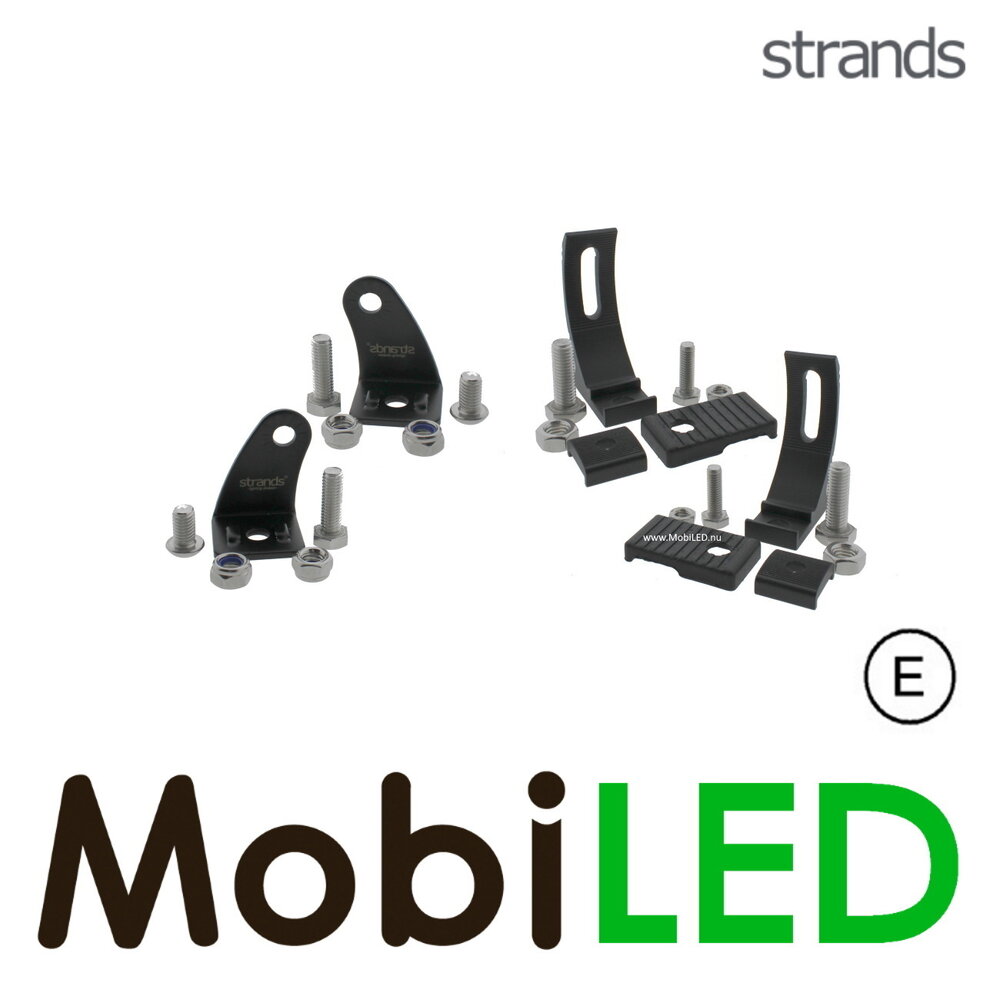

The mounting brackets are included, for both side and bottom mounting.

Specifications:

• Voltage: 9-32 V DC
• Consumption: 32 W
• Theoretical lumen: 4000
• Actual lumen: 2200
• 1 Lux @: 368m
• IP-Class: IP67/IP69K
• Beam pattern: combi
• Position light: white or amber
• Cable lenght: 500 mm
• Connector: DT-4
• Material housing: aluminium
• Material Lens: polycarbonate
• LxDxH: 300,6 x 55,5 x 45 (65 including bracket) mm
• Operating temperature: -20℃ - +45℃
• E-Approved: ECE R7, R112 (ref 37.5) + ECE R10

Video:

Connection diagram:

• Black: - (earth)
• Red: + (positive)
• White: white position light
• Yellow: amber position light

Documents:

• Manual SR 12
• Productsheet
•
