Strands Siberia 9" Night Ranger white/amber combi

Strands Siberia 9" Night Ranger

For the Siberia Night Ranger, Strands has taken the already highly regarded look and performance of the Siberia LED bar and turned it into spotlights with daytime running lights.
A new Siberia model that really boosts the appearance of your car with a modern, raw design. Comes with a dual position light which gives you an excellent lighting effect and a great look.

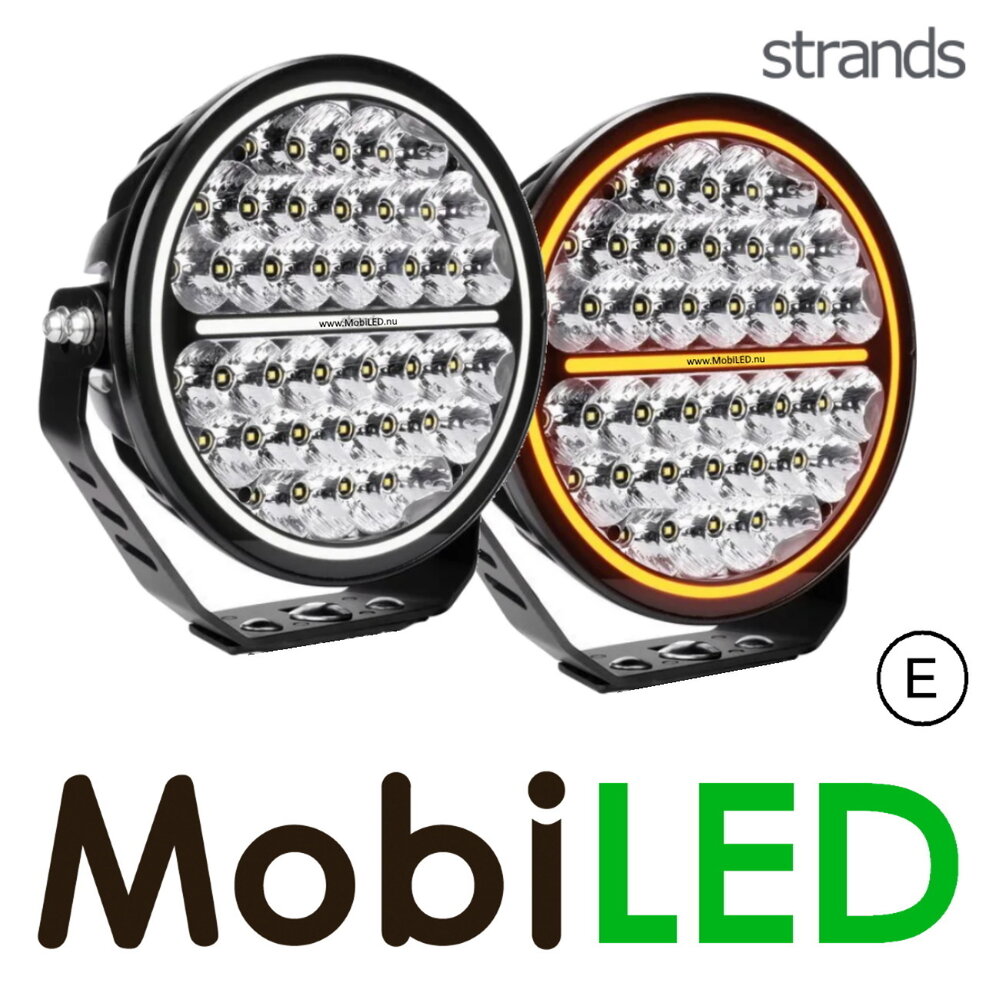

Available in two models: Night Ranger (clear lens) and Bush Ranger (yellow lens). Each model is available in both 7" and 9". Both models are E-approved.

Specifications:

• Number of LEDs: 34
• Voltage: 9-32 V DC
• Power: 170 W (theoretical) / 145 W (actual)
• Light output: 20400 lm (theoretical) / 13377 lm (actual)

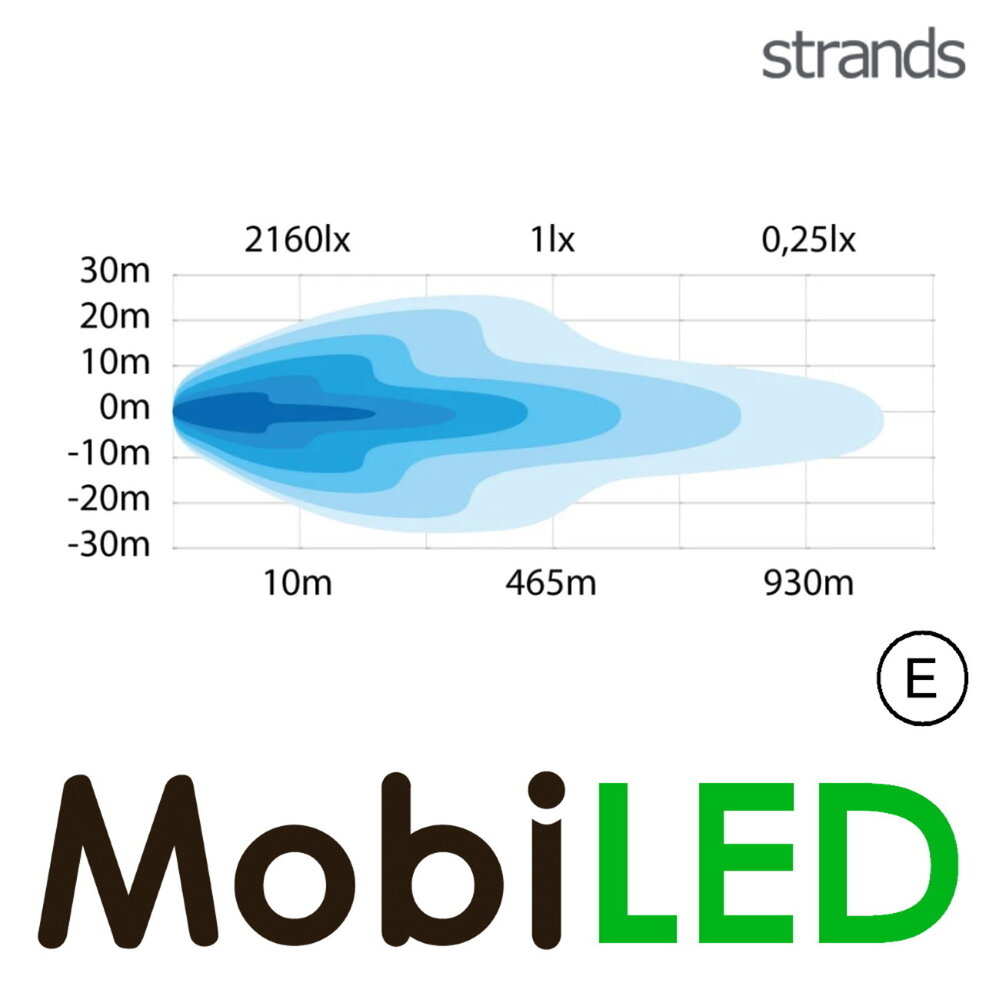

• 1 LUX @ m 465
• Light temperature: 6000K
• Rating: IP67 / IP69K
• Lens color: clear
• Color LEDs: white and amber
• Beam pattern: combi
• Position light: amber and white
• Connection: DT-4 connector (included)
• Cable length: 500 mm
• Material bracket: stainless steel
• Material housing: aluminum
• Material lens: polycarbonate
• Dimensions LxDxH: 228.6 x 86.7 x 228.6 mm
• Height including bracket: 249.3 mm
• Diameter: 228.6 mm
• Operating temperature: -20°C - +45°C
• Certification: R112, R7, R10

Installation diagram:

• Black: - (earth)
• Red: + (positive)
• White: white position light
• Yellow: amber position light
