LED bar HD single 20 watt spot E-mark

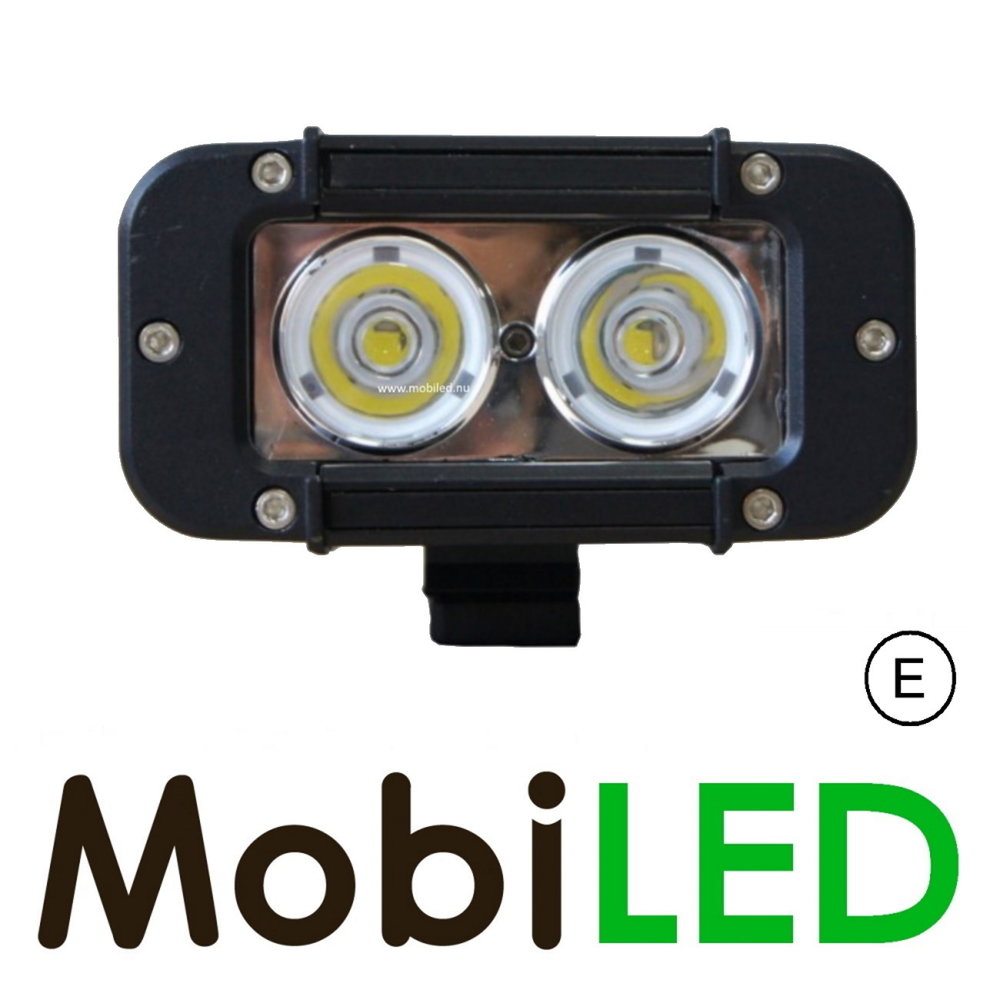

Narrow LED bar with a single row of very powerful CREE-XM 10 watts LEDs

Despite the compact design, the bar still has sufficient cooling due to the oversized cooling fins in the heavy-duty housing. The bar is equipped with spot emitters with a beam angle of 20 degrees. The larger sizes are supplied as a combi model. Special lenses together with the powerful LEDs ensure a high light output. This bar has ECE E9 R10 E-mark certification.

Specifications:

• Power: 20 watts
• Lumen: 1800 lumens
• Light image: spot
• Voltage: 10-30 V multi-voltage
• Consumption: 12 V-1.7 A / 24 V-0.8 A
• LEDs: 2x 10 watt CREE LEDs
• Light color: 6000K
• Lens: PMMA
• Housing: aluminum

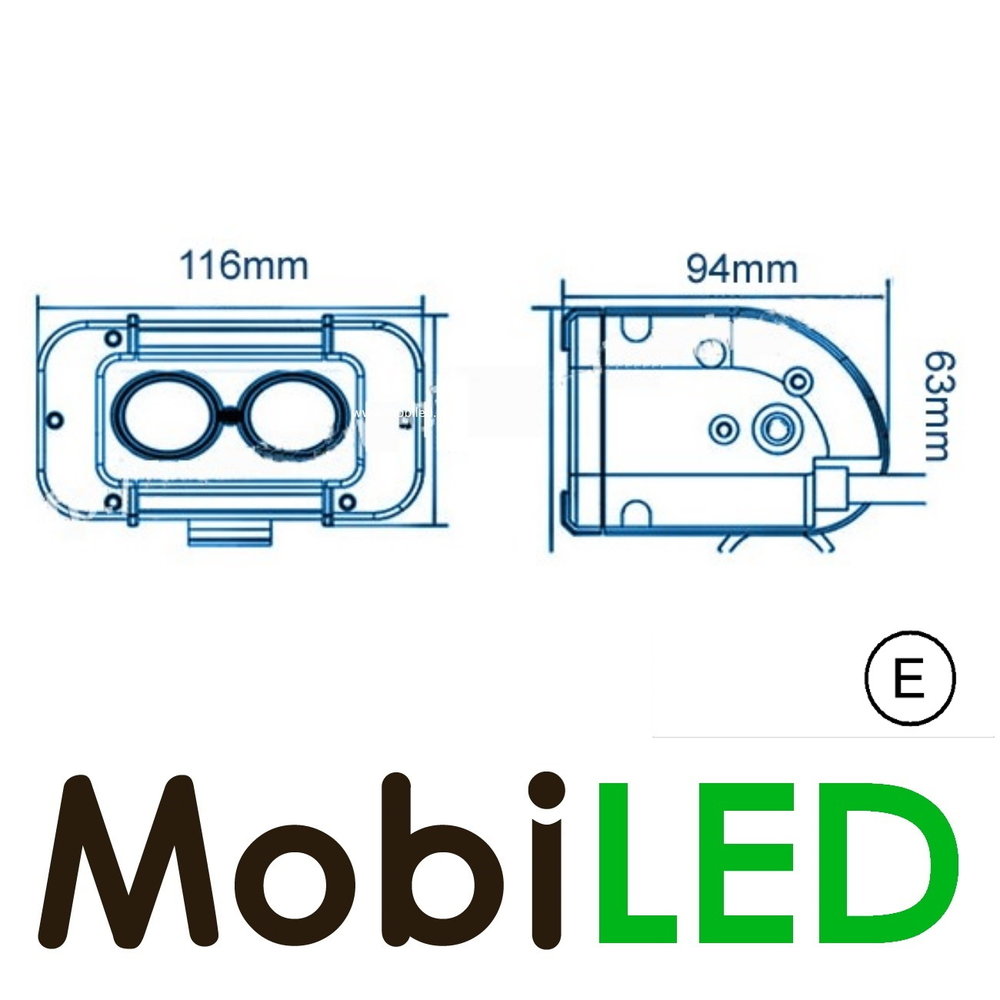

• Size: 116 x 94 x 63 mm
• Weight: approx. 870 grams
• Mounting: aluminum mounting bracket
• Lifespan: 30,000 hours
• Water resistant: IP67
• Certification: E9 ECE R10
