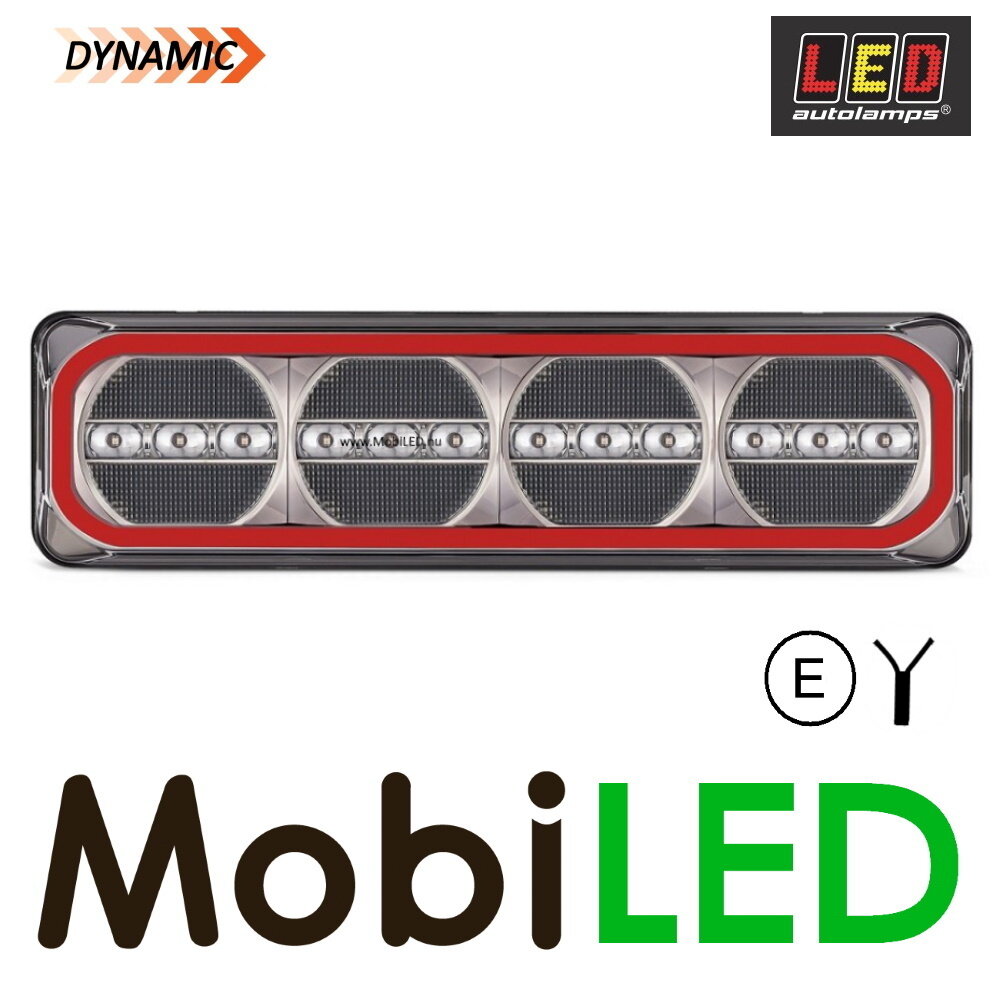

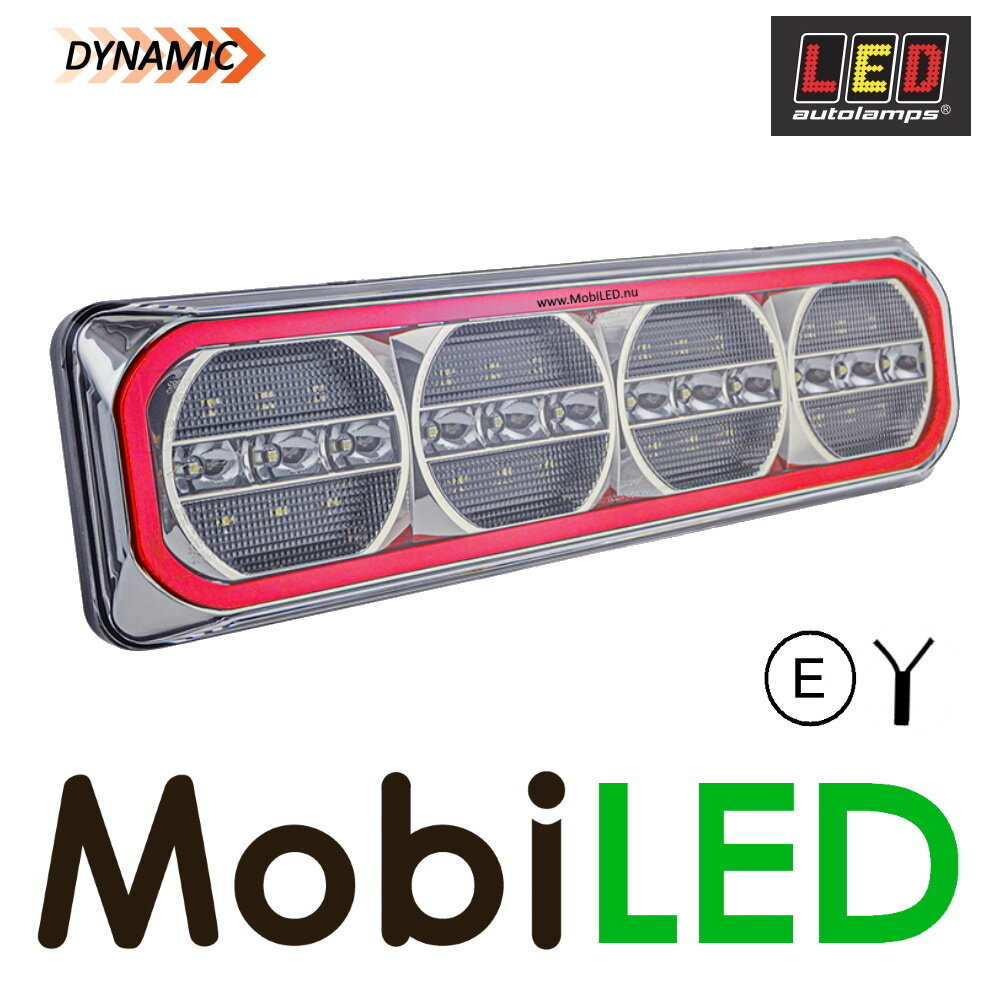

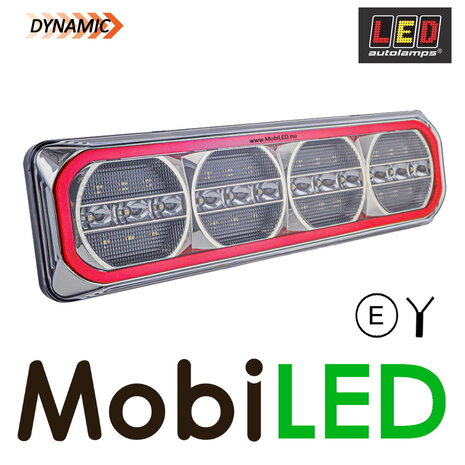

LED autolamps Dynamic rear light 5 functions 12/24 volts

LED car lamps Dynamic rear light 5 functions

Wide dynamic rear light, modern styled in 4 parts. Features innovative dynamic functionality and ultimate durability. Universal, so can be used on both left and right sides.
This product has a striking black-chrome housing, a neon-look rear light that runs around the blocks and a dynamic turn signal that runs the entire length of the lamp.

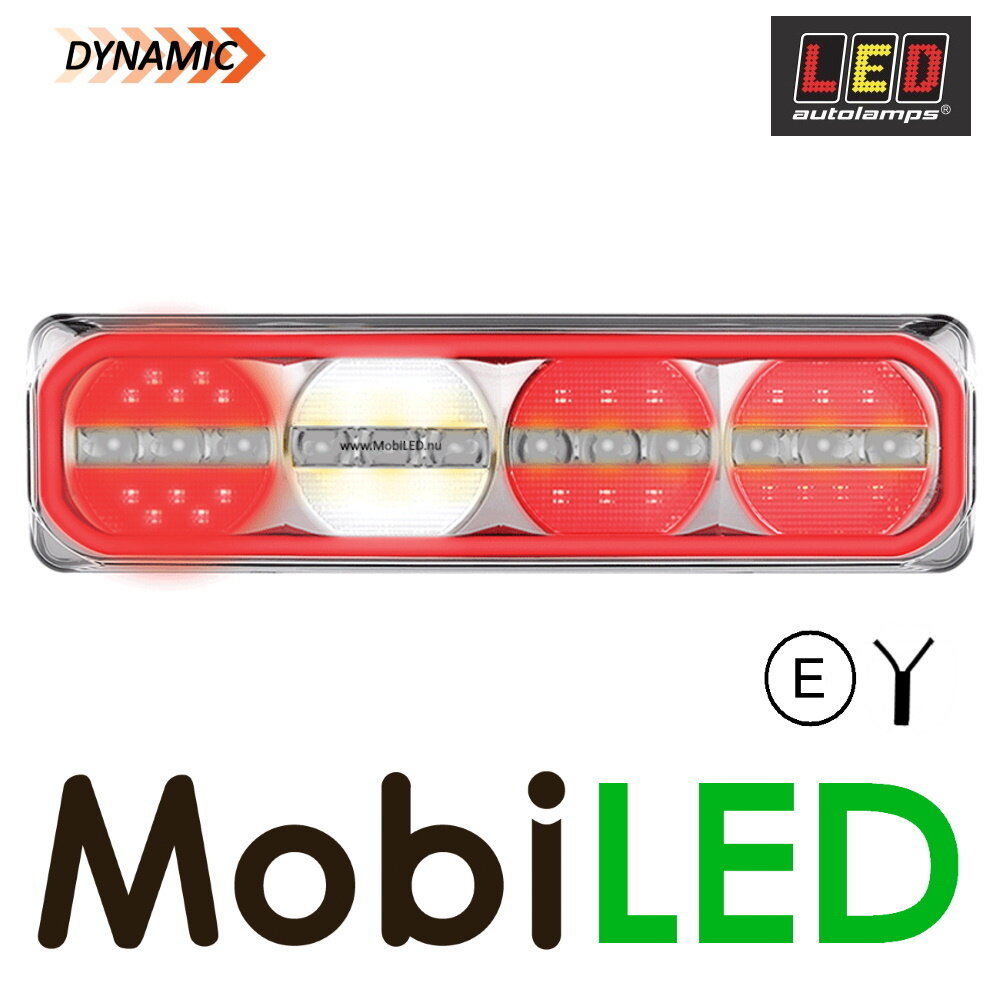

The 4 blocks are fog light, reversing light, brake light 2x.
Each function is fully ECE certified. This lamp is suitable for 12 or 24 volts and can therefore be used widely.
There are 2x hidden screw fixings, which can be adjusted from 250 mm to 185 mm (bolt distance).

Functions:

1. Rear light
2. Dynamic turn signal
3. Brake light
4. Reversing light
5. Fog light

Specifications:

• Voltage: 12-24 volts

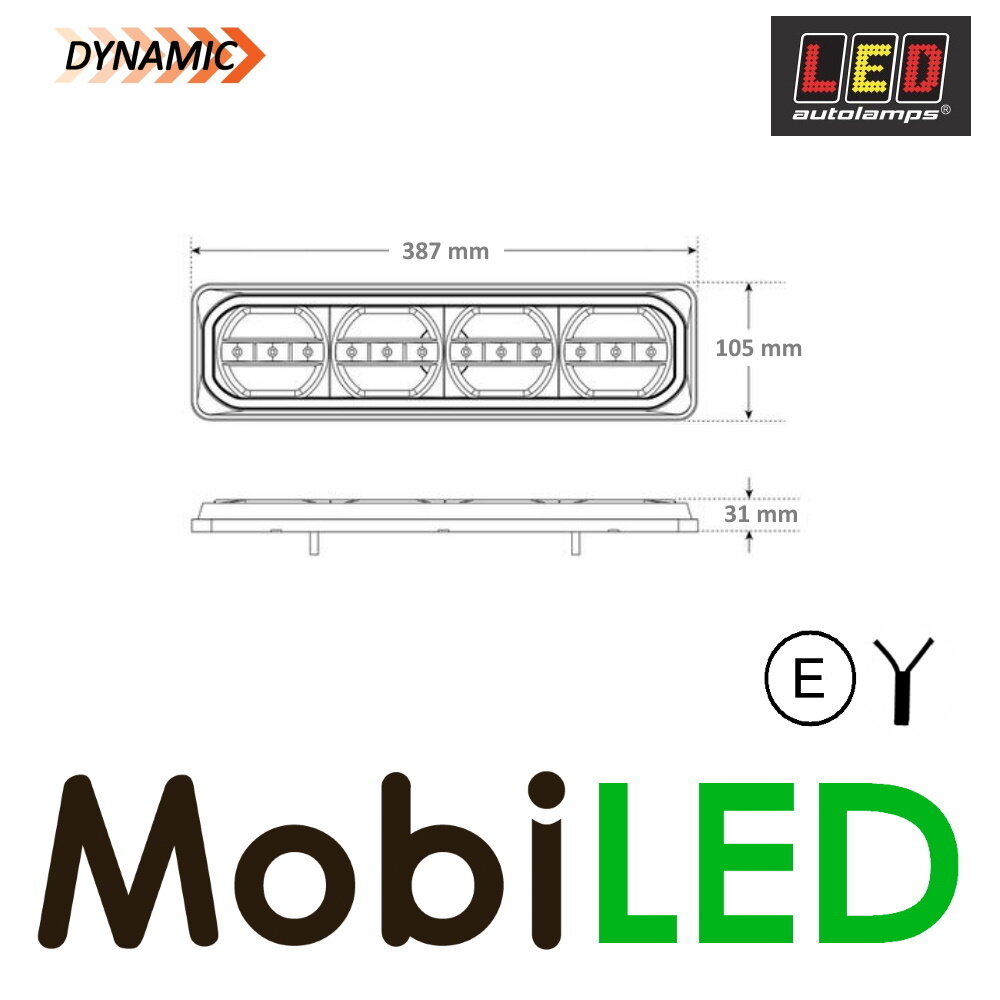

• Dimensions: 387 x 105 x 31 mm
• Number of functions: 5
• Cable length: 350 mm
• Water resistance: IP67
• Certification: EMC, R6, R7, R10, R23, R38

Connection diagram:

• White= mass
• Brown= rear light
• Red= brake light
• Yellow= turn signal
• Black= reversing light
• Blue= fog light
