Illuminated digital control panel

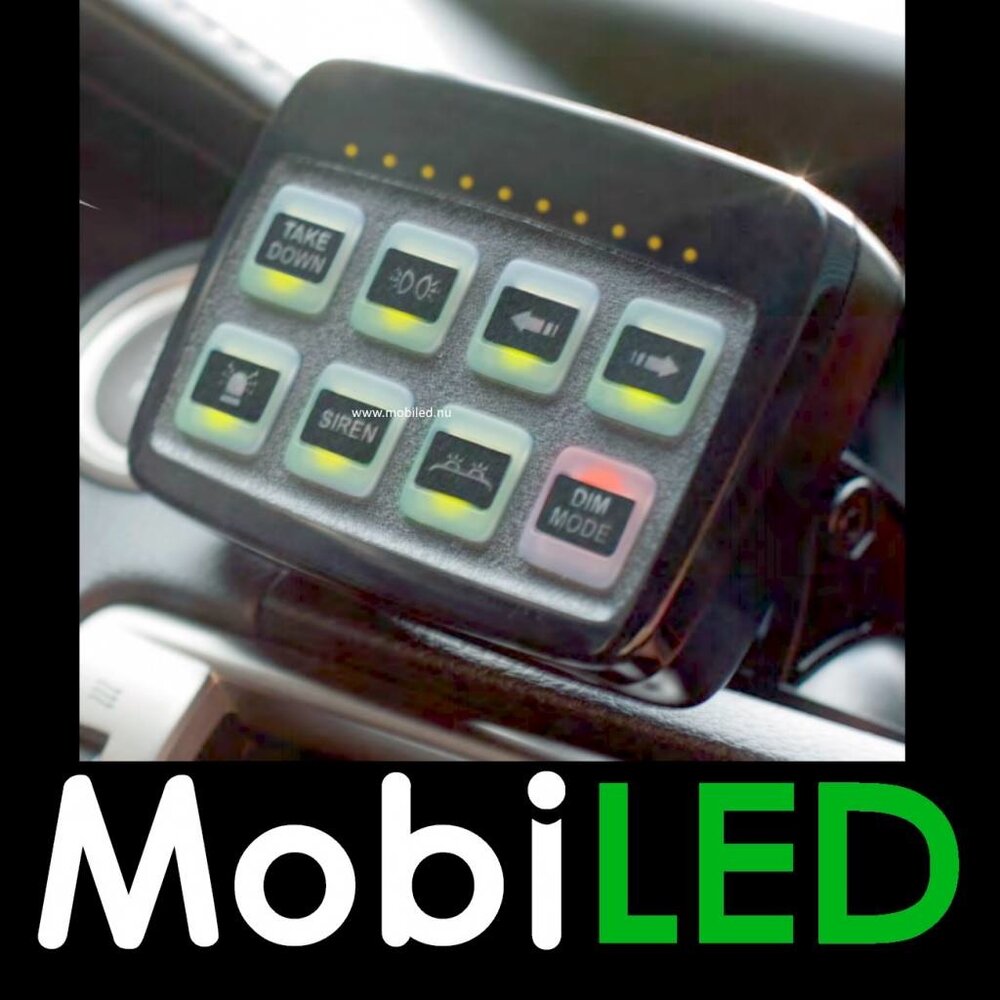

Digital control panel with backlit CanGO 2

The CanGO 2 system is extremely suitable when multiple functions need to be switched, such as a traffic advisor or a speed camera with many options. Due to the supplied symbol sheet, a suitable symbol for each function can be pasted on the key.

The system is equipped with 7 outputs: 3 outputs with a switching capacity of 0.2 amps and 4 outputs are 0.1 amps. This control panel is therefore especially suitable for control currents and for activating relays. A relay must therefore be placed for each heavier function.

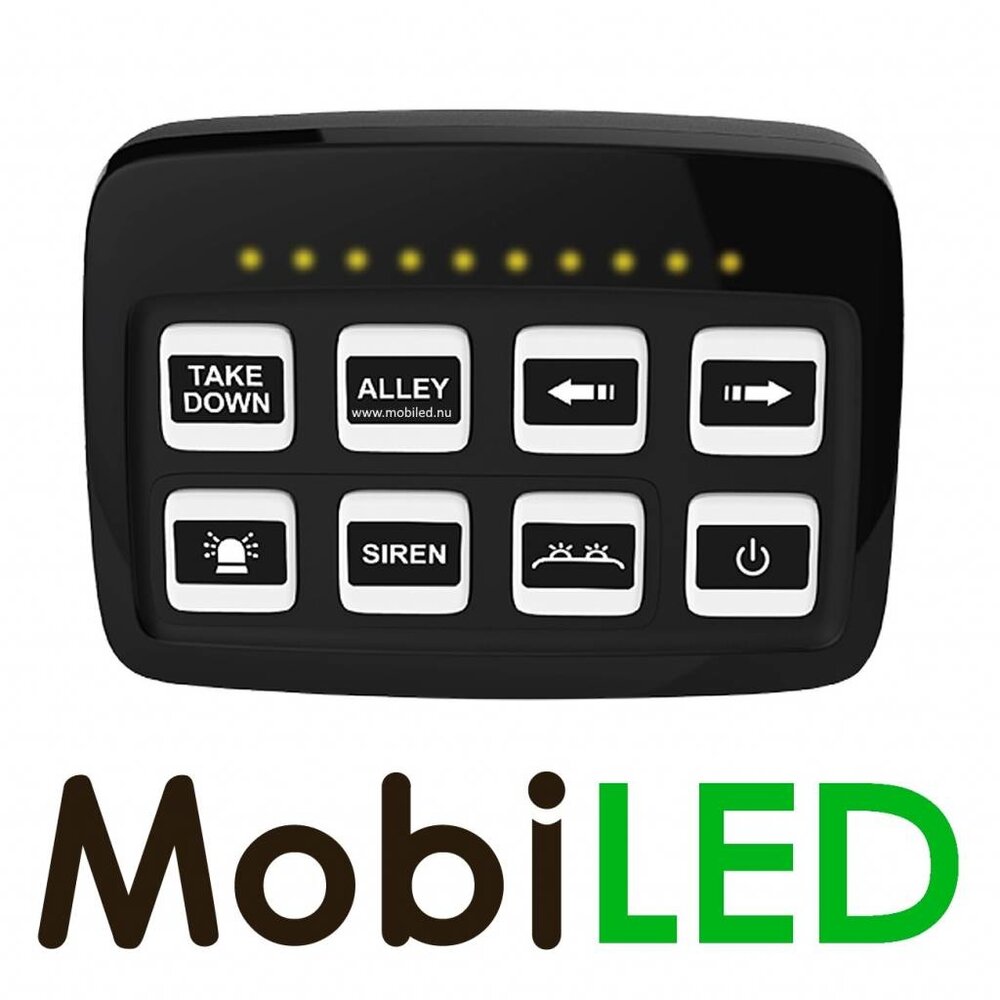

The control panel is equipped with keys that are lit green when inactive. When a key is activated, it turns red. The keys can be programmed as an on/off key or as a momentary/push key.

There is also a built-in LED flash pattern display function at the top of the control panel. This way you can see which pattern the flashbar has or the traffic advisor is ending.

Specifications

• Voltage 9 - 30 Vdc
• 7 Switches, 3x 0.2A, 4x0.1A
• Flash pattern display displaying the flash bar or traffic advisor
• Interlock siren, strobe bar and grill strobe circuit
• red/green backlit keys

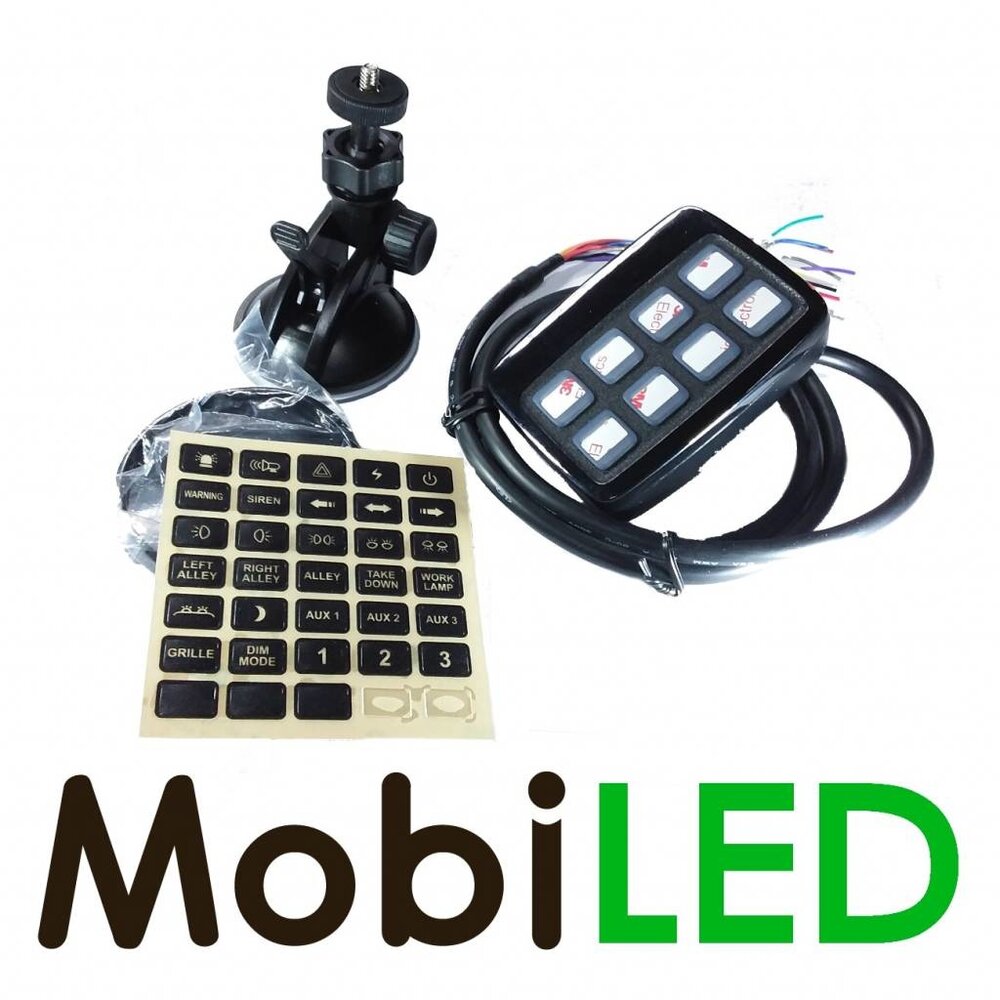

• sticker sheet with icons
• 2 year warranty
• EMC ECE R10
