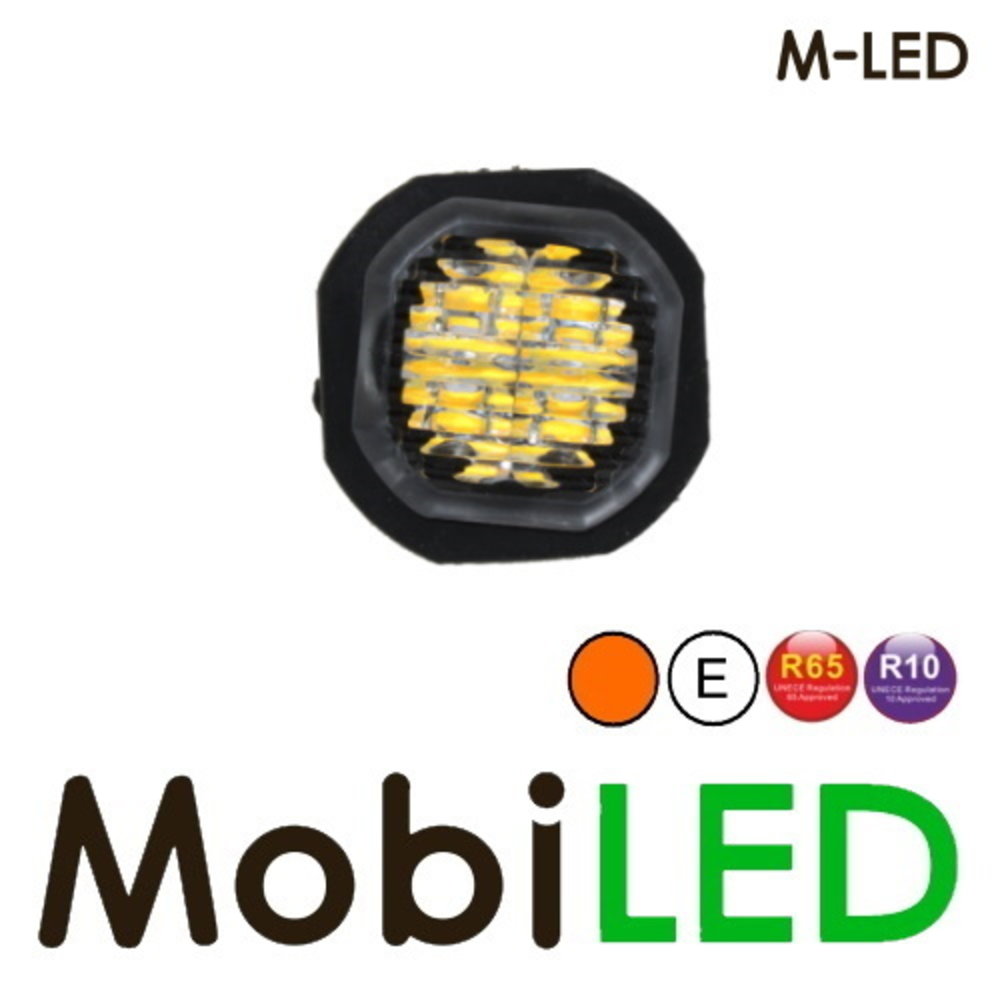

Hide away LED flash built-in

Solid flash built-in flash

This robust flash is suitable for professional use and has ECE R65 / R10 XA1 certification. It is no problem to build in or build up in the grill. This powerful flash is equipped with 4 x 5 watt LEDs and produces a bright light image. A plastic lens enhances the light extra and the lens guarantees a good spread. An aluminum housing ensures good heat conduction. Hole size for mounting is 25mm. The hide away flash has 23 pre-programmed patterns including a continuous on. Linking and synchronizing is fine. This flash can of course be used on 12 and 24 volts (multi-voltage) and has the necessary certification, R10, R65, XA1, ECE, CE. This model is only available in Amber / orange.

Specifications:

• Color: Amber / Orange
• Voltage: 12 - 24 volts (multi-voltage)
• Number of LEDs: 4 x 5 watt
• Lens: PC
• Casing: Aluminum

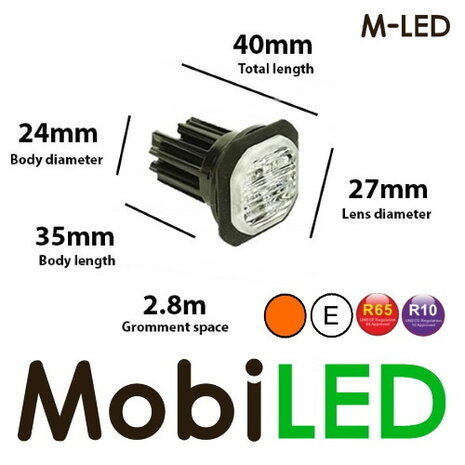

• Size: 40 x 25 mm
• Certification: CE E9 ECE R65 / R10 XA1

Connection diagram:

• Red: connect all red wires bundled to +
• Black: connect all black wires bundled to -
• Yellow: With the bundled yellow wires, touch and hold the - for 1 to 3 seconds.
• White: Synchronize the flashes by connecting all the white wires.
