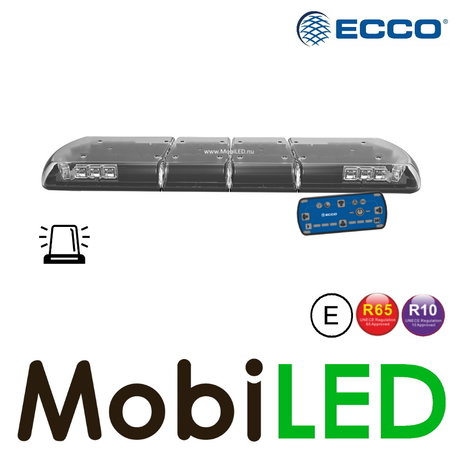

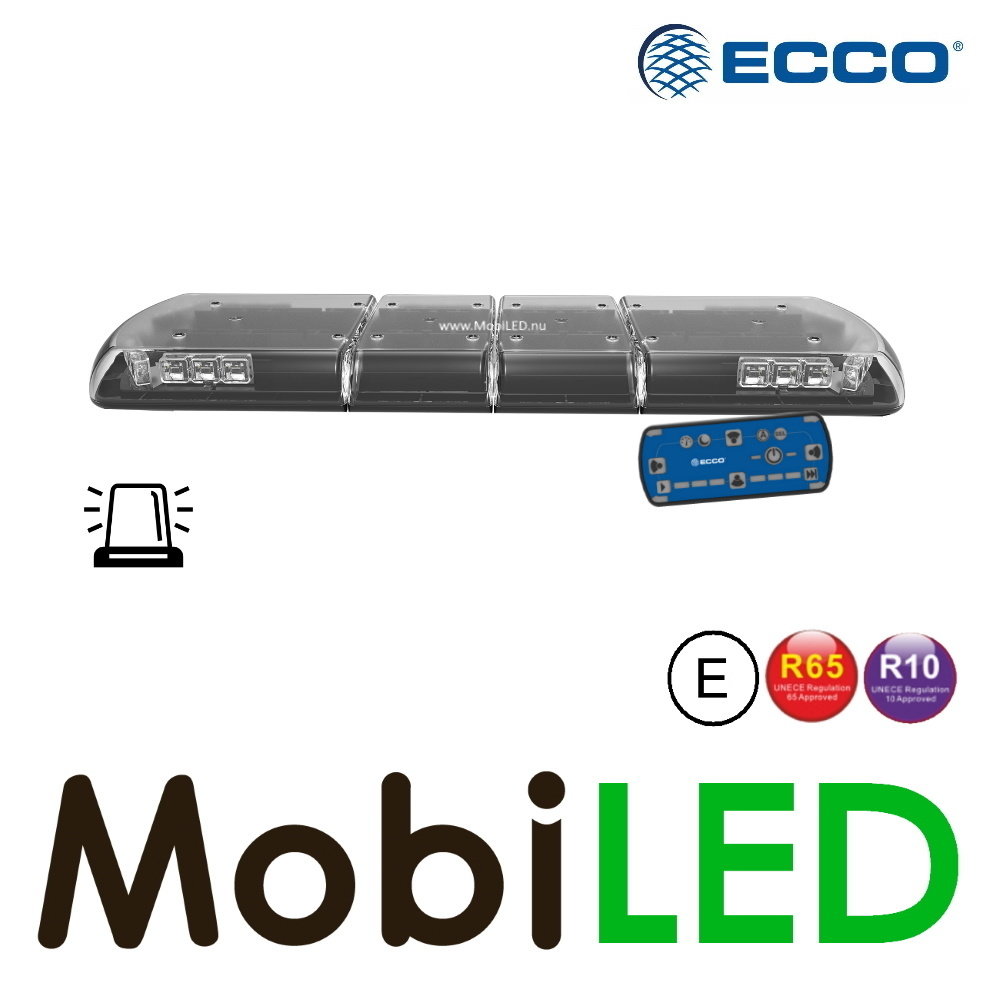

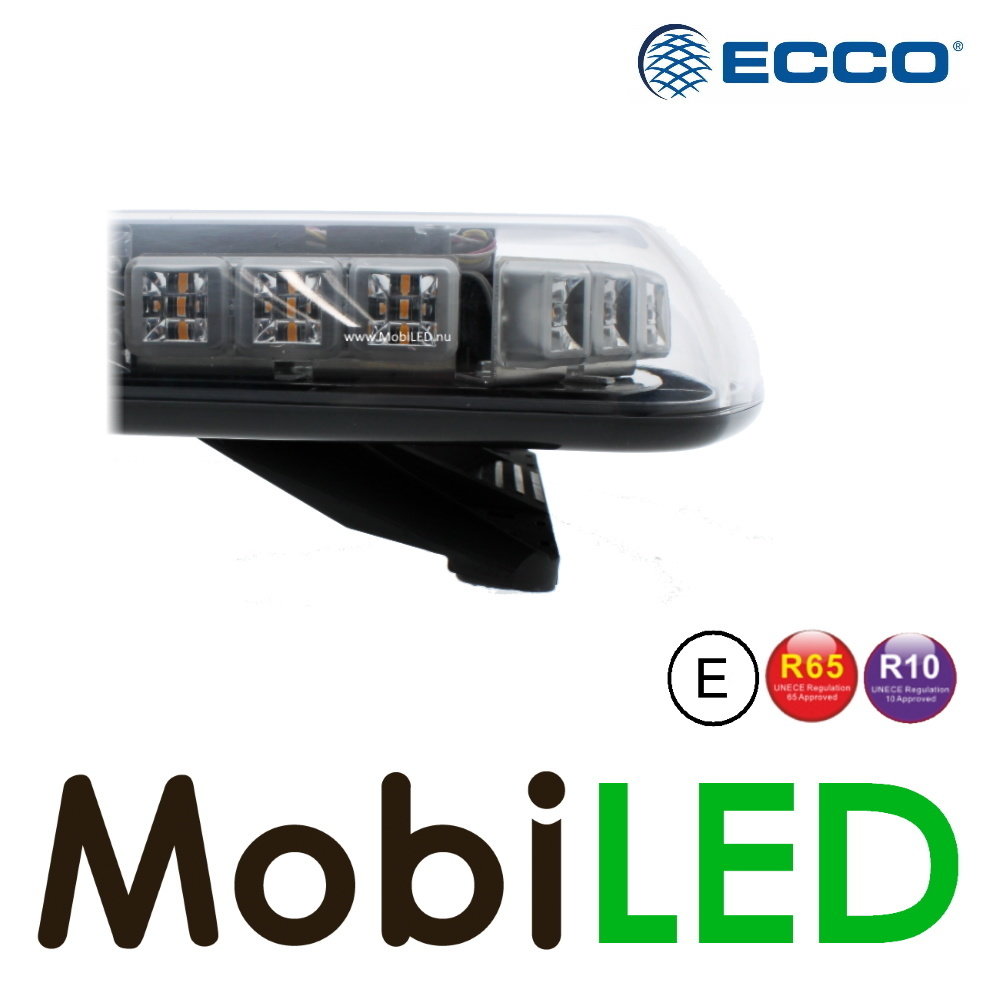

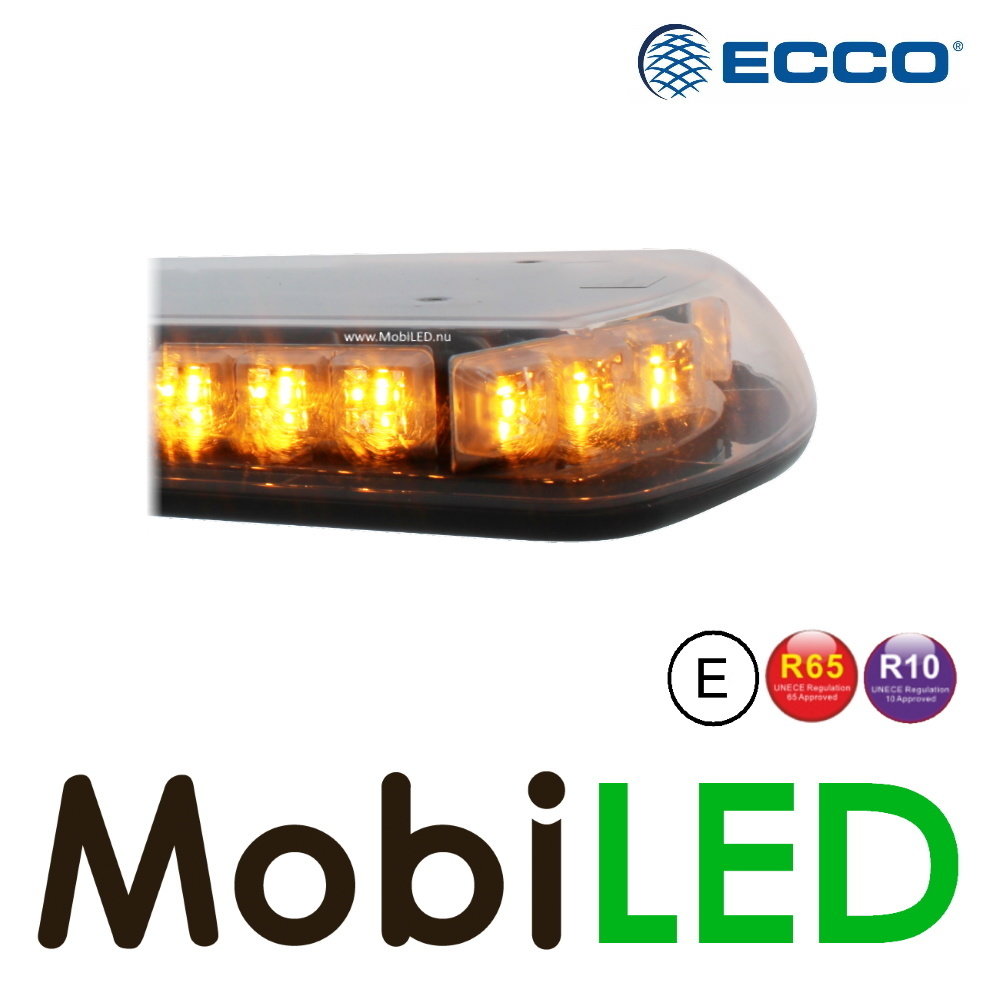

ECCO 12+ Series Flashbar 914mm 8 leds

ECCO 12+ Series Flashbar 914mm 8 leds

The 12+ series LED lightbars are versatile and powerful warning devices suitable for a wide range of vehicle types and duties. Available in multiple length options with sleek low-profile styling, durable aluminium chassis and a polycarbonate base and lens.

The series offers an exceptional EMC performance, Industry leading CISPR 25. The ICE optic warning modules offer brighter appearance for better visibility. The bar is R65 Class II approved so can be set to a night time brightness setting.

MobiLED offers a range of 11 standardized bars from 910 to 1524 mm length with different options. Custom configurations are available on request. The 12+ series LED lightbar supports three kinds of possible LED modules: warning, stop-tail-indicator, and alley/worklight.

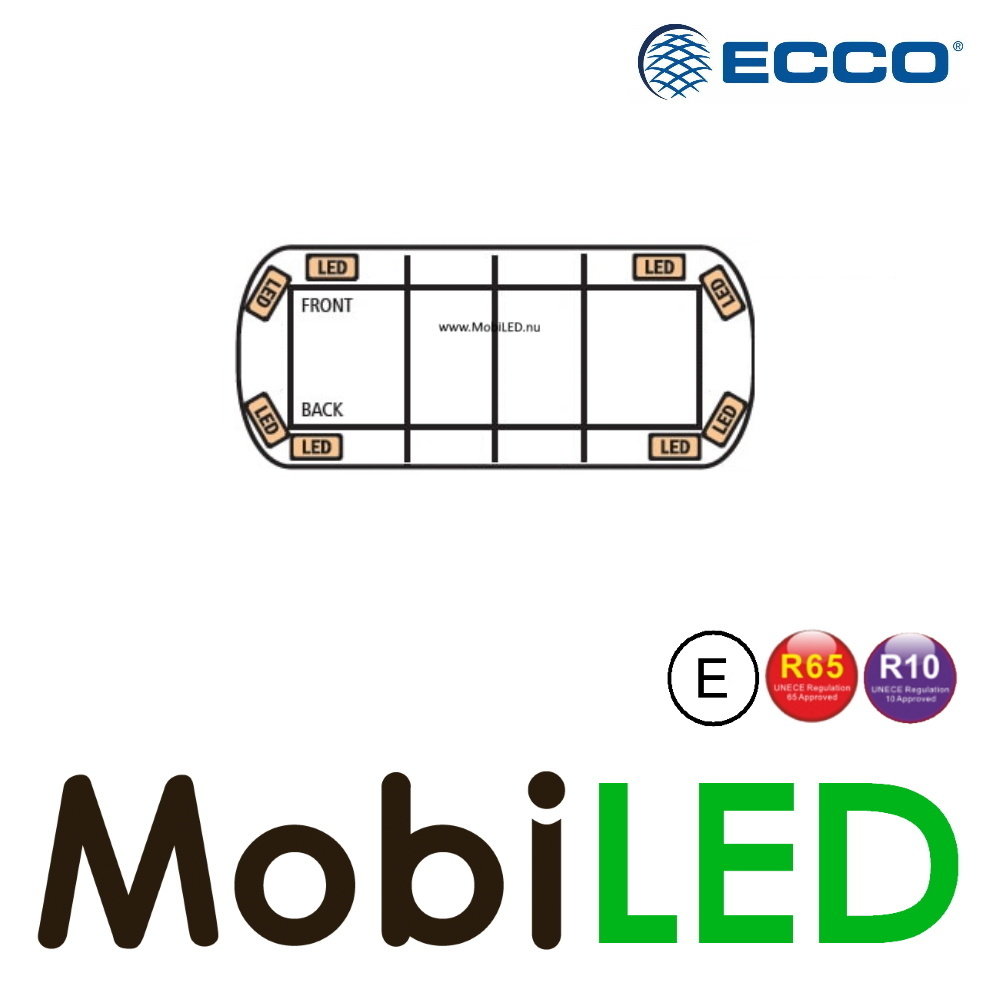

This 914mm 8 leds flashbar is equipped with 8 LED warning units positioned at the 4 corners of the bar.

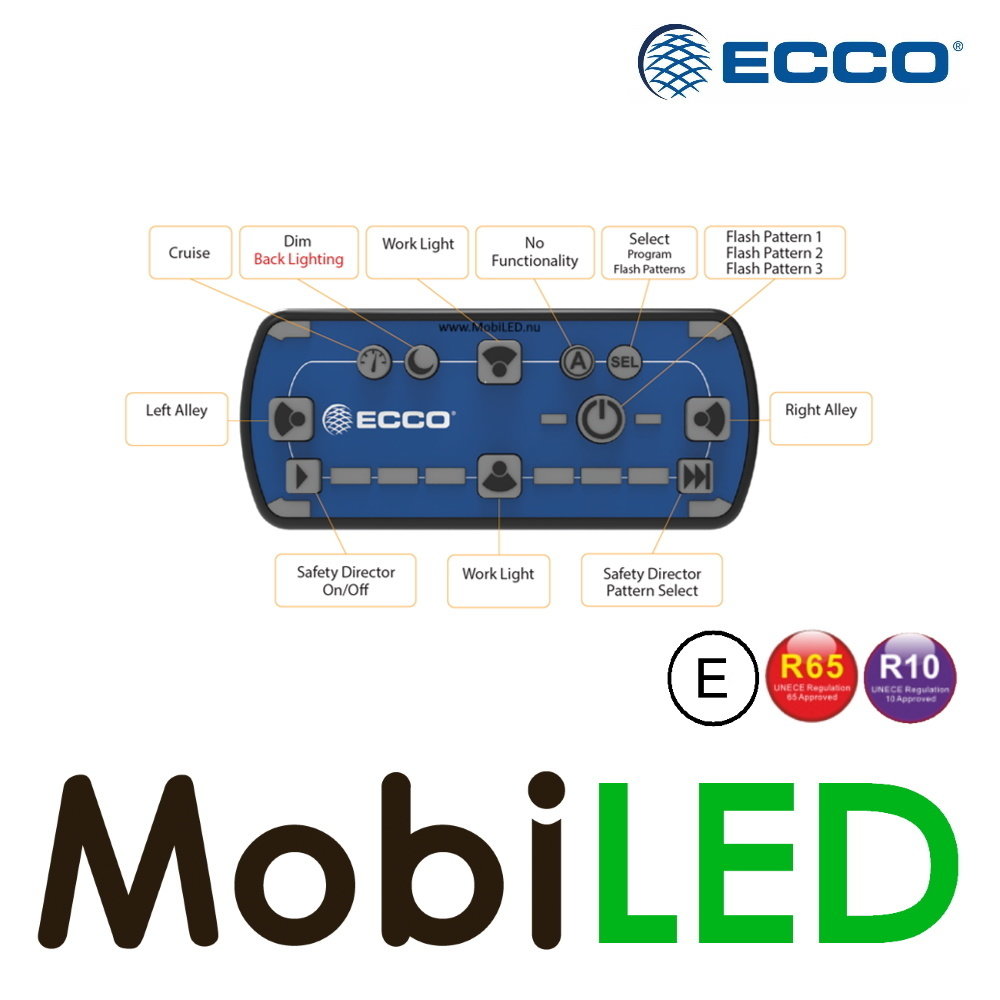

An advanced controller is supplied for operating the bar from within the vehicle.

The bar is equipped with 8 R65 approved flash patterns, 3 of which can be stored as a preset on the controller.

Specifications:

• Voltage: 12-24VDC
• Aluminium chassis
• Polycarbonate base and lens
• Temperature Range: -30°C to +50°C
• Power cable length: 4m
• Cable length to controller: +/- 14m
• Length: 914mm
• Height: 63.5mm
• Width: 279.5mm
• Approval: R65 Class II
• EMC CISPR 25

For this bar customization is possible in the form of extra warning units and/or worklights. Please contact us for more information.
