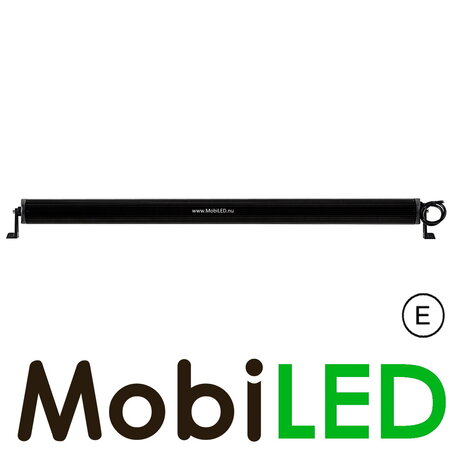

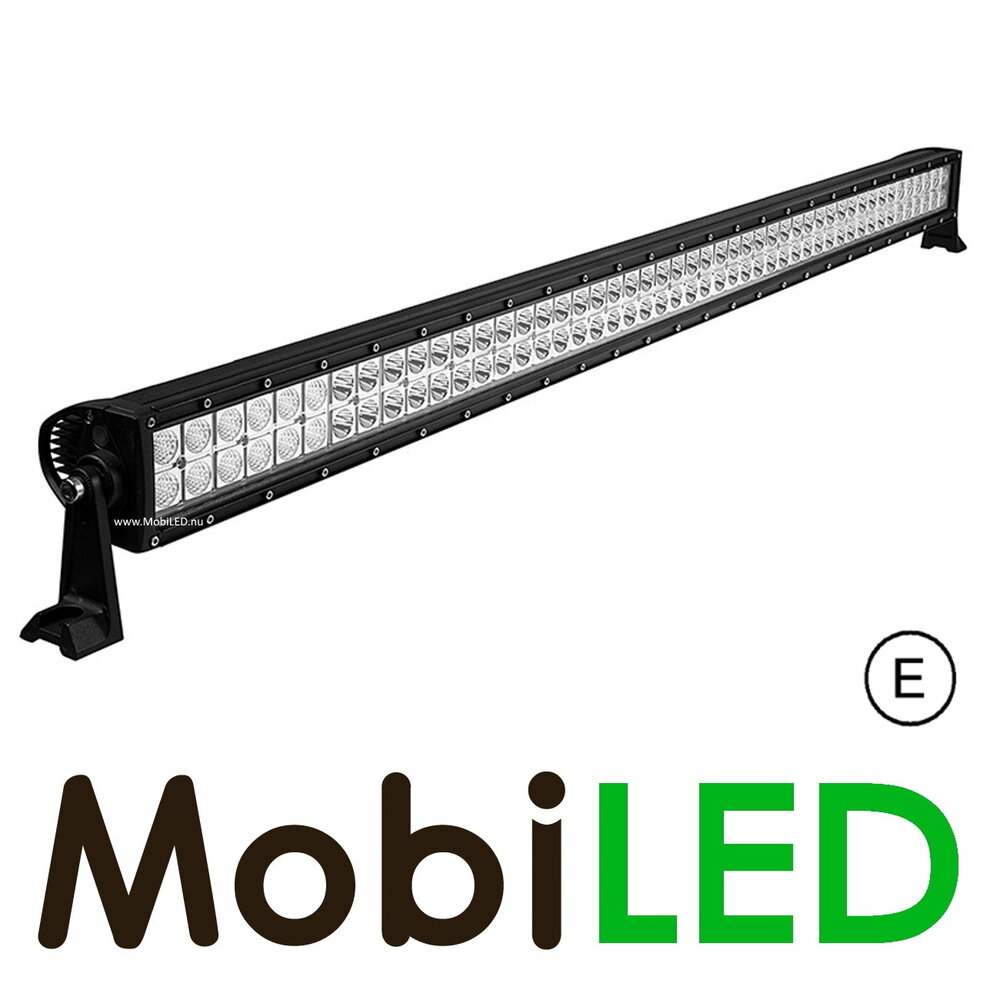

CREE light bar 288 watt combi beam

288 watt CREE light bar combi beam

After the rally sport and the Dakar, we are now seeing the LED light bars more and more. Not only in the ralley world but also in the off road and 4x4. A compact replacement for the traditional spotlights. Besides the fact that these are used in motorsport, we also see that more and more work vehicles are equipped with LED bar lighting. Salvage companies, car ambulances, ramps, agricultural mechanization and excavators benefit greatly from these lamps. Furthermore, LED bars are also used for maritime purposes on yachts, boats and inland vessels.

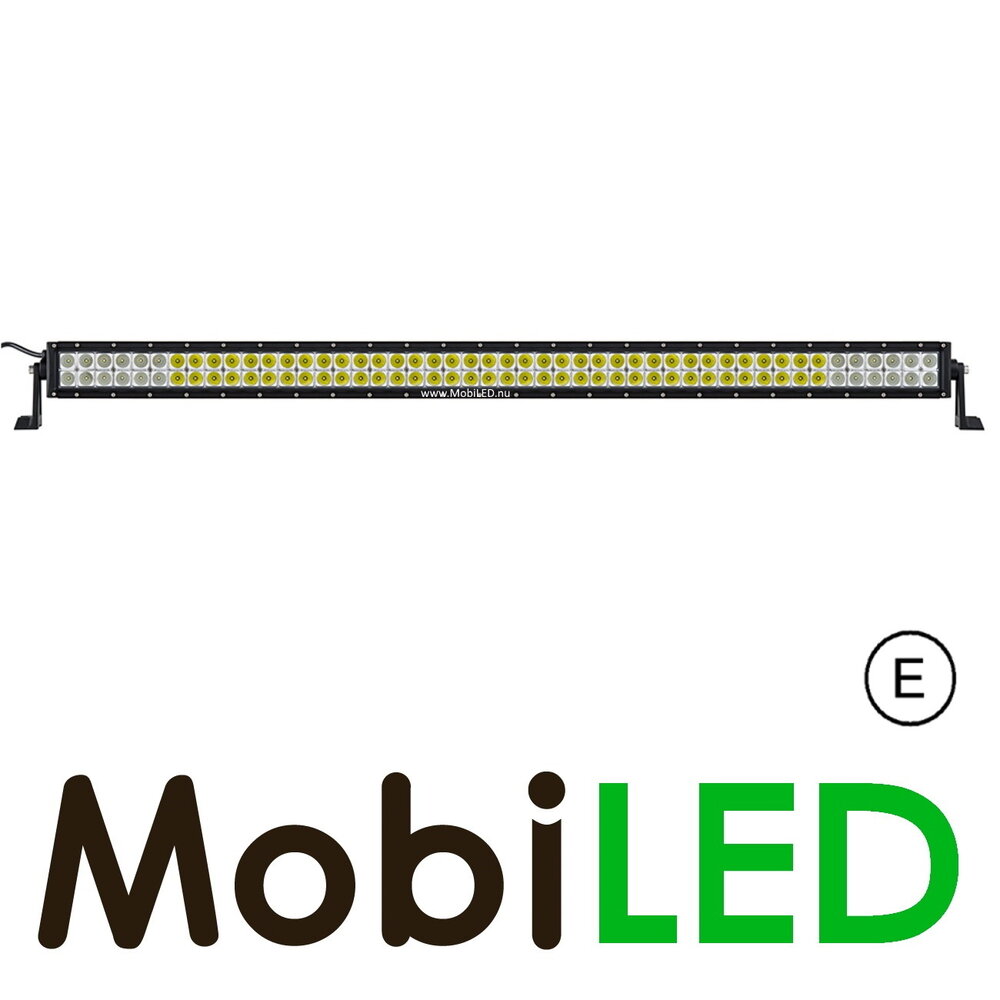

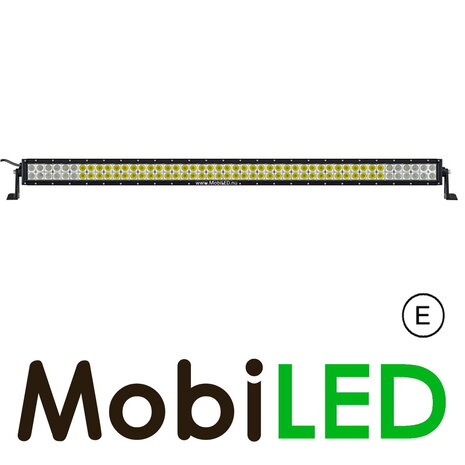

MobiLED supplies these lamps as spotlights and as a combination. That is a spotlight and floodlight in one bar. With a combi bar, the ends of the bar are fitted with floodlights with a beam angle of 60 degrees and the center of the bar has spotlights with a beam angle of 30 degrees. These cannot be switched separately from each other.
The wider the bar, the wider the working field of these lamps. In addition to the light intensity and wattage, the size is especially decisive when purchasing these lamps.
All bars that we have in our program are shock and water resistant according to IP67. They are also multi-voltage (10-30 volts). It makes no difference in terms of brightness whether they are connected to 12 or 24 volts. In heavy duty applications, these lamps are also mounted in a steel U-profile to protect them against branches and trees, among other things.
The bars are compact and easy to install and connect. In the grill or push bar of your car or on the roof or cabin of your vehicle.

Specifications:

• Power: 288 watts
• Lumens: 25920 lumens
• Light image: combi spotlight and floodlight
• Voltage: 10-30 V multivoltage
• Consumption: 12 V-24 A / 24 V-12 A
• LEDs: 96x 3 watt CREE LEDs
• Light color: 6000K
• Lens: PMMA
• Housing: aluminum
• Dimensions: 1270 x 114 x 86 mm (1330 incl)
• Weight: about 5200 grams

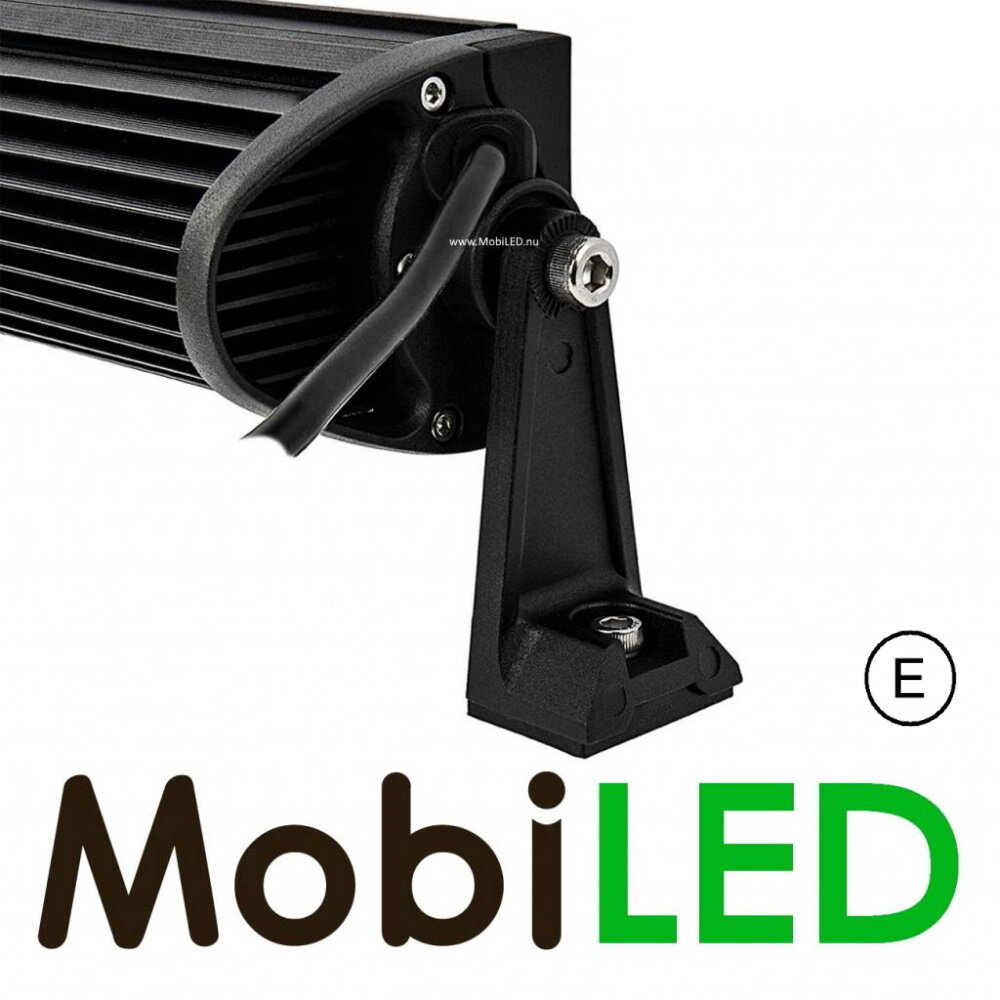

• Mounting: aluminum mounting bracket
• Lifespan: 50,000 hours
• Water resistant: IP67
• Certification: CE RoHS
