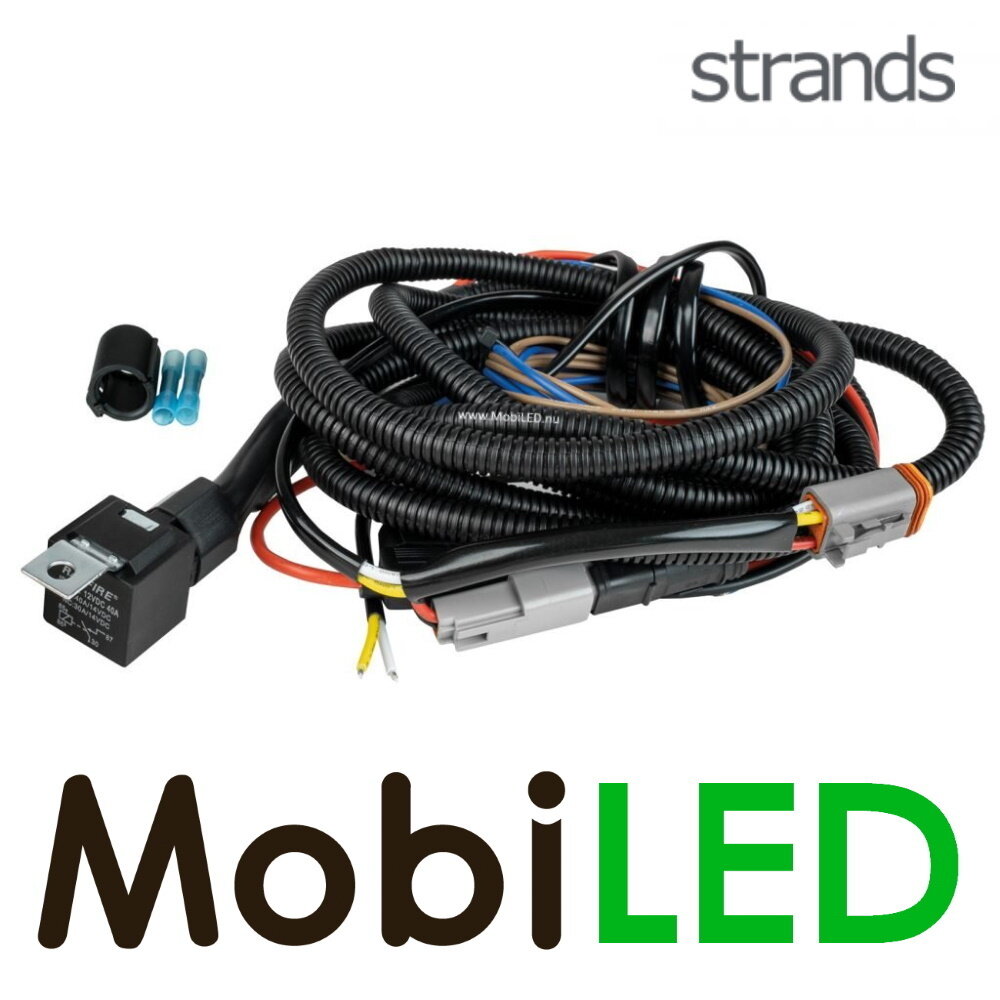

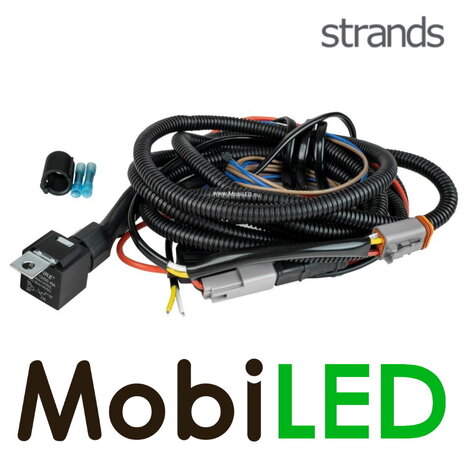

Cableset Siberia 1x DT-connector

Cable set Siberia 1x DT connector

A professional cable set with 1x DT connector. Works perfectly for connecting one LED bar with a maximum consumption of 156W with DT connector, and 360W if the DT connector is removed. A protective hose encloses the cables and the DT connector to protect against shock, wear, dirt and water.

The wiring kit is used to connect your LED bar directly to the high beam signal, but a blue cable has been added (signal 87A) that also allows you to send power to another function such as a position light. It is used when switching to a multifunction relay. If your LED bar has a double position light and a DT-4 connector, you can use the supplied adapter cable.

The cable set makes it easy to carry out a professional installation. If you need to cut the cable for various reasons, you can easily do it. There are two watertight, shrinkable cable connectors that make it possible to make a secure and tight closure afterwards and a hose clamp to reconnect the protective hose. It is important that you cut off at least 50 cm from the relay to ensure that the cable does not come into contact with moisture.

Specifications

• Voltage: 12V
• Fuse: 30 Amp
• Relay: 30 Amp
• Max connection: 156W (with DT) / 360W (without DT)
• DT-2 connection
• Adapter cable DT-2 > DT-4

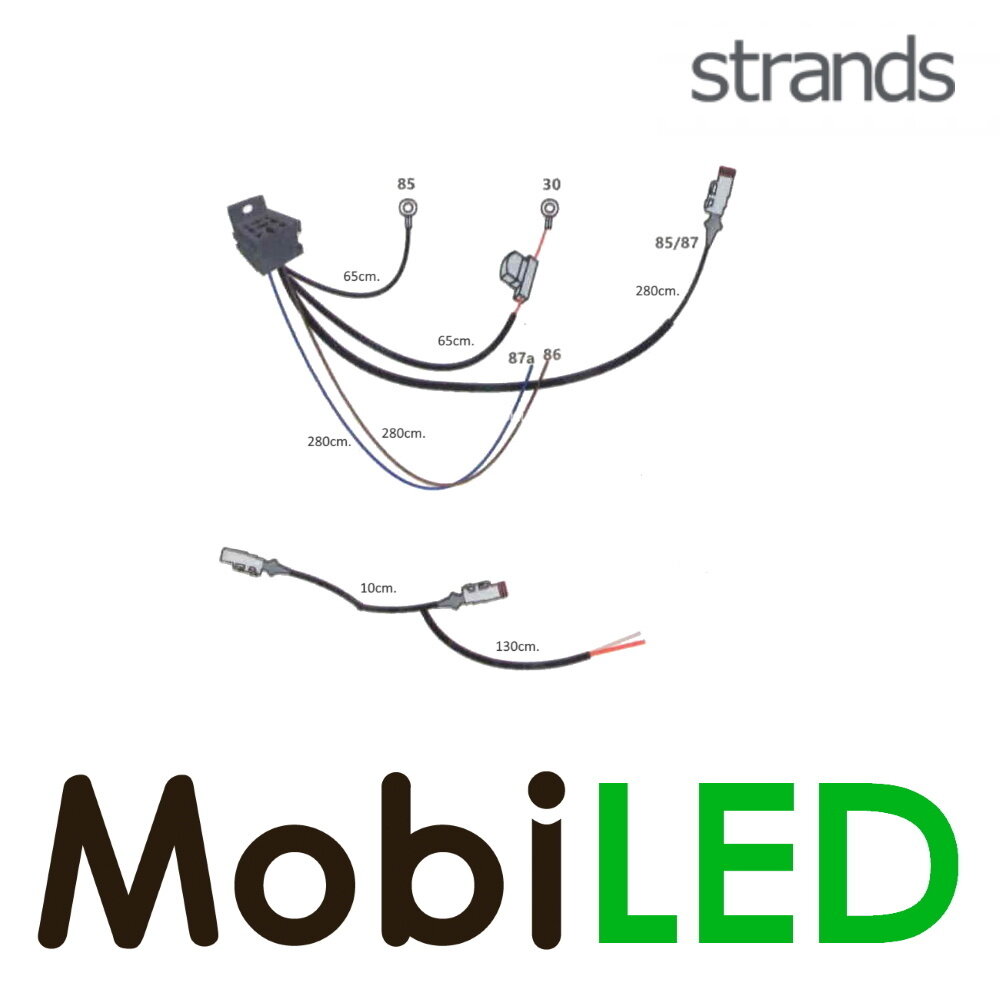

• Relay cable length > Battery + / - 65cm
• Relay cable length > LED light bar 280 cm
• Relay cable length > High beam signal 280 cm
• Relay cable length > Second exit 280 cm
• Adapter cable length DT2 > DT4: 10cm
• Adapter cable length DT > position light + 130 cm
• Protective hose that protects against moisture and dirt
• Possibility to adjust the length of the cable, for an easier and more beautiful installation
