B16 Rotating beacon / Flash lamp Blue 14 cartridges fixed mounting 10-30 Vdc R65 class 2

B16 Rotating beacon / Flash lamp Blue 14 cartridges fixed mounting

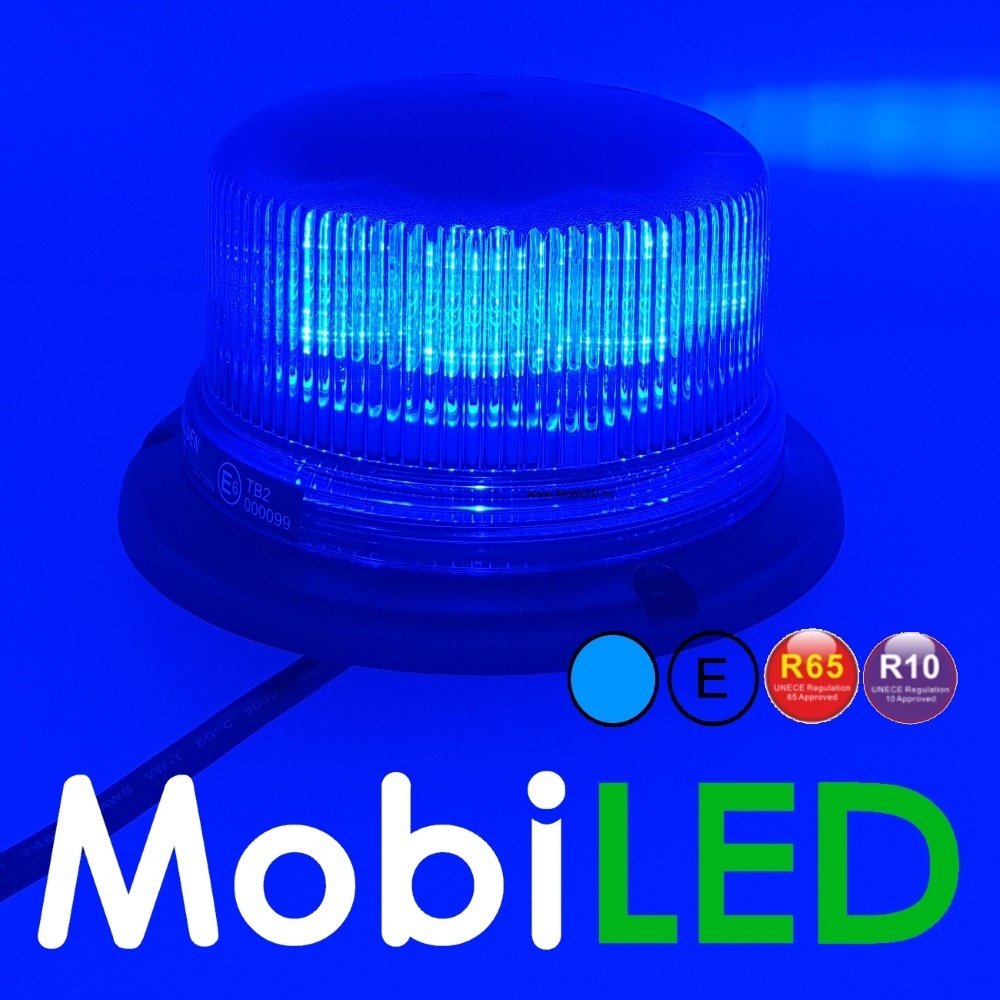

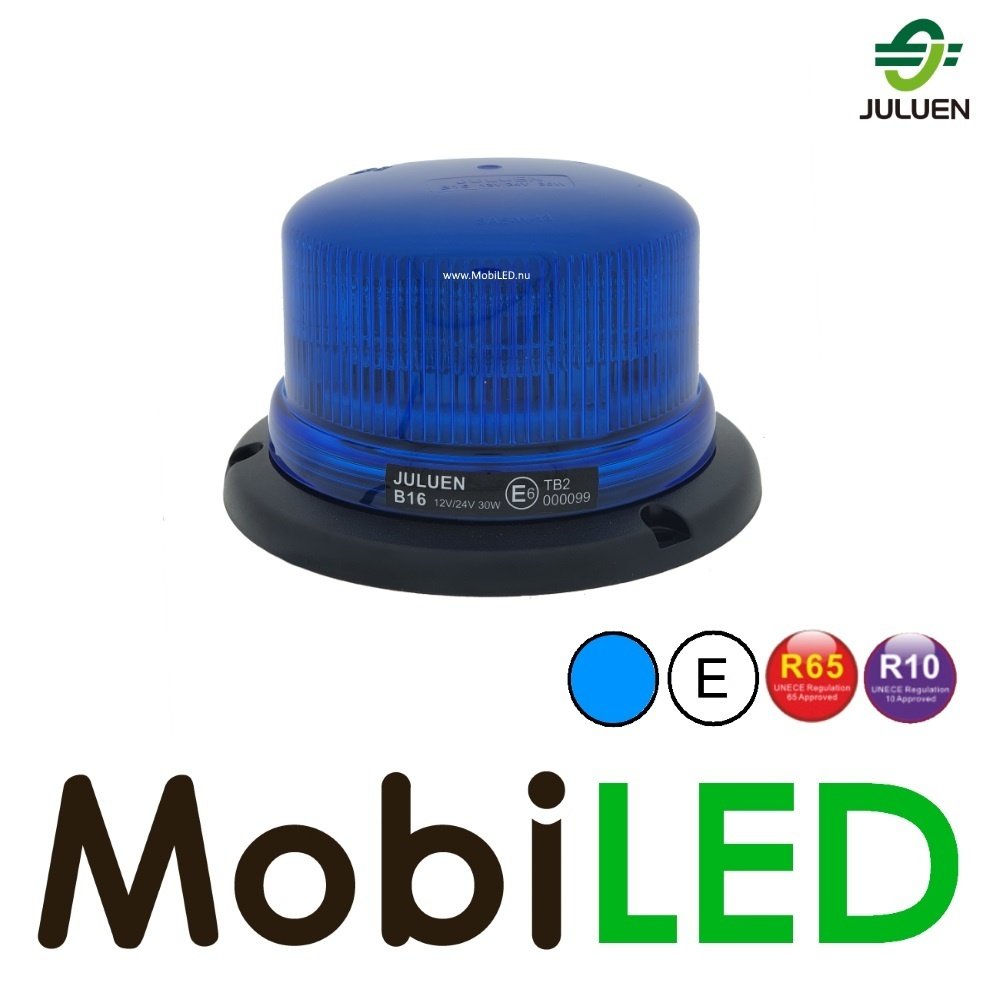

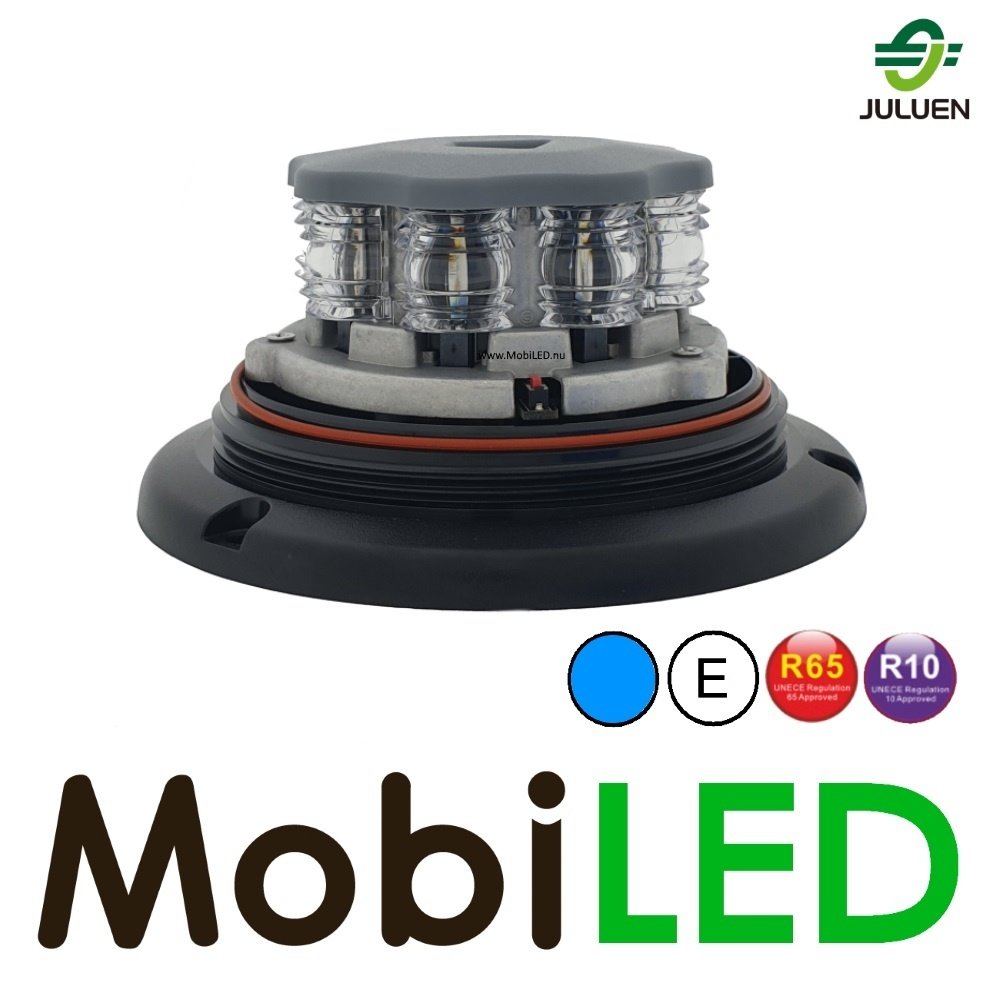

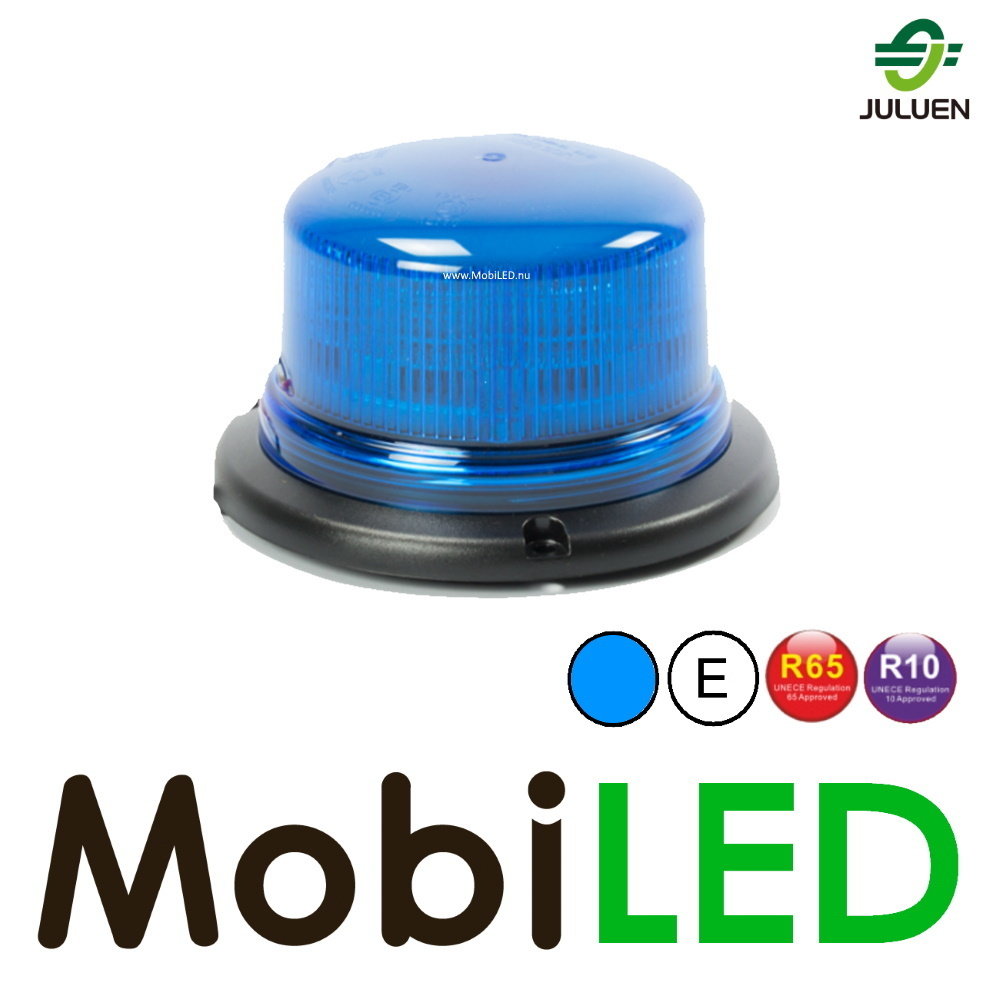

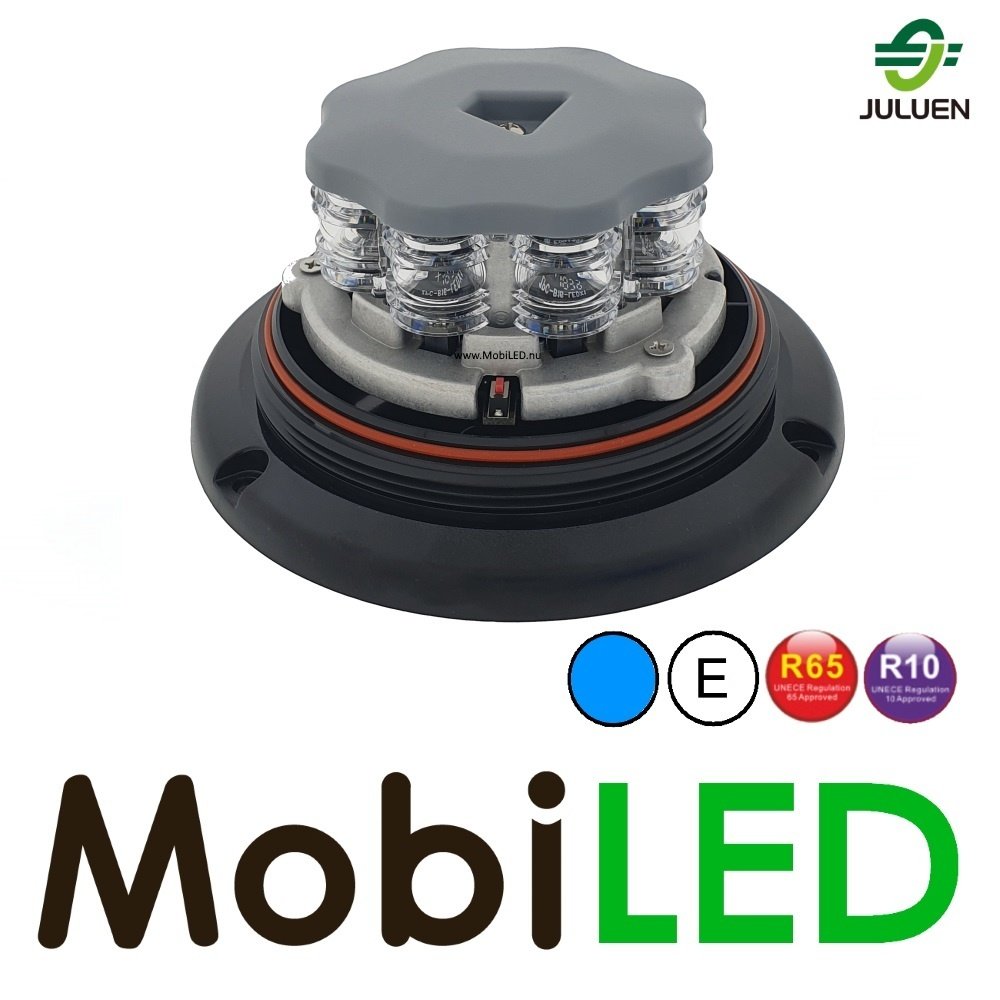

The B16 is a compact LED flash lamp with a total height of 80mm, including base. The lamp is provided with a cable. With the cabling, the flash pattern, the synchronization and simultaneously alternating flashes can be set, the manual is included in the package. The beacon is factory set with the double flash cartridge, R65 approved. The cartridge can be changed by a button that is incorporated in the lamp. The rotating beacon is fully certified in accordance with ECE R65 class 2 and / or class 1 and therefore dimmable. It is compact, robust and has a great flash power. It meets all standards and also performs under tough conditions.

Specifications:

• Voltage: 9–30 volts (multi-voltage)
• Number of LEDs: 8 x 3 watt
• Average continuous use: 15 watts (depending on flash pattern)
• Peak power: 30 watts
• Certification: ECE R65 TA1, TB2, EMC ECE R10
• Water resistance: IP68

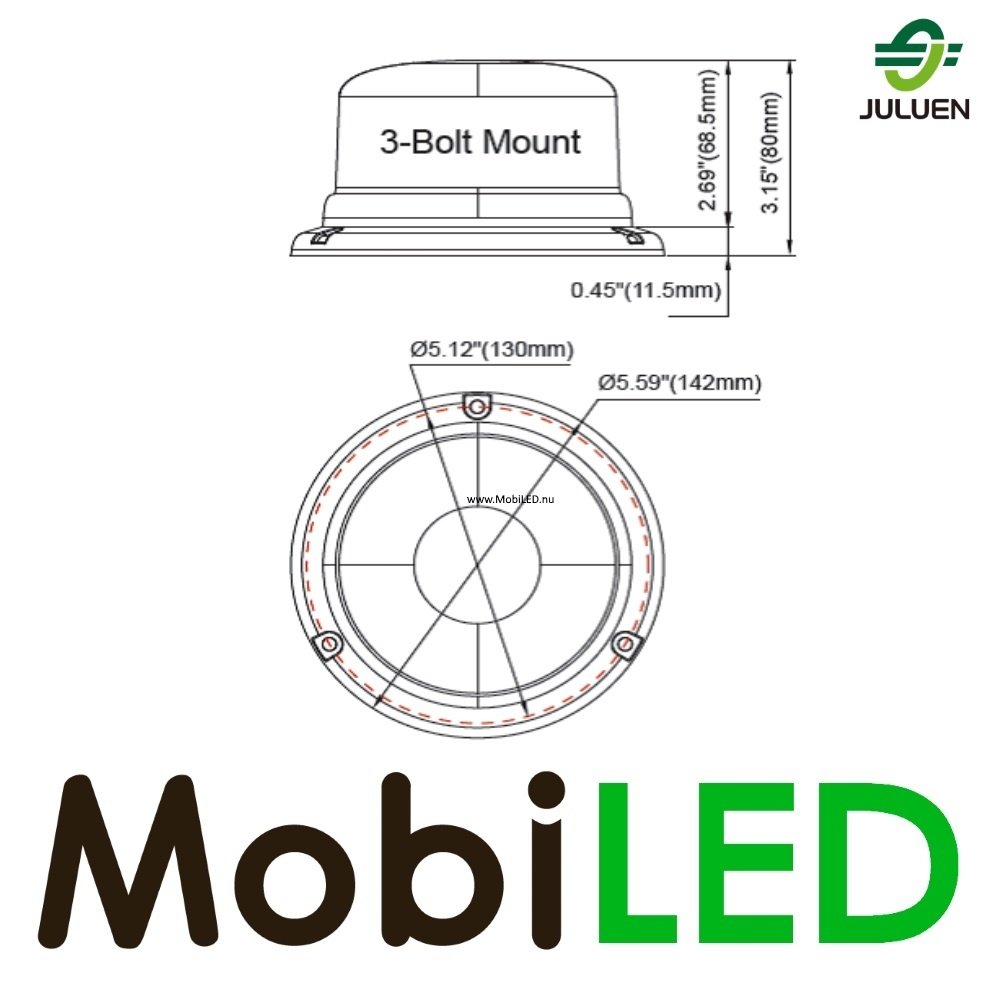

• Dimensions: 115 x 80 mm
• Flash Patterns: 11

Flash Patterns:

• Double R65 (2Hz)
• Single (2Hz)
• Quad (2Hz)
• Single
• Double
• Quad
• Quint
• Mega
• Ultra
• Single-Quad
• Single H/L
• Single Column Rotator
• Double Column Rotator
• Double Rotator x5 ->Quint x5

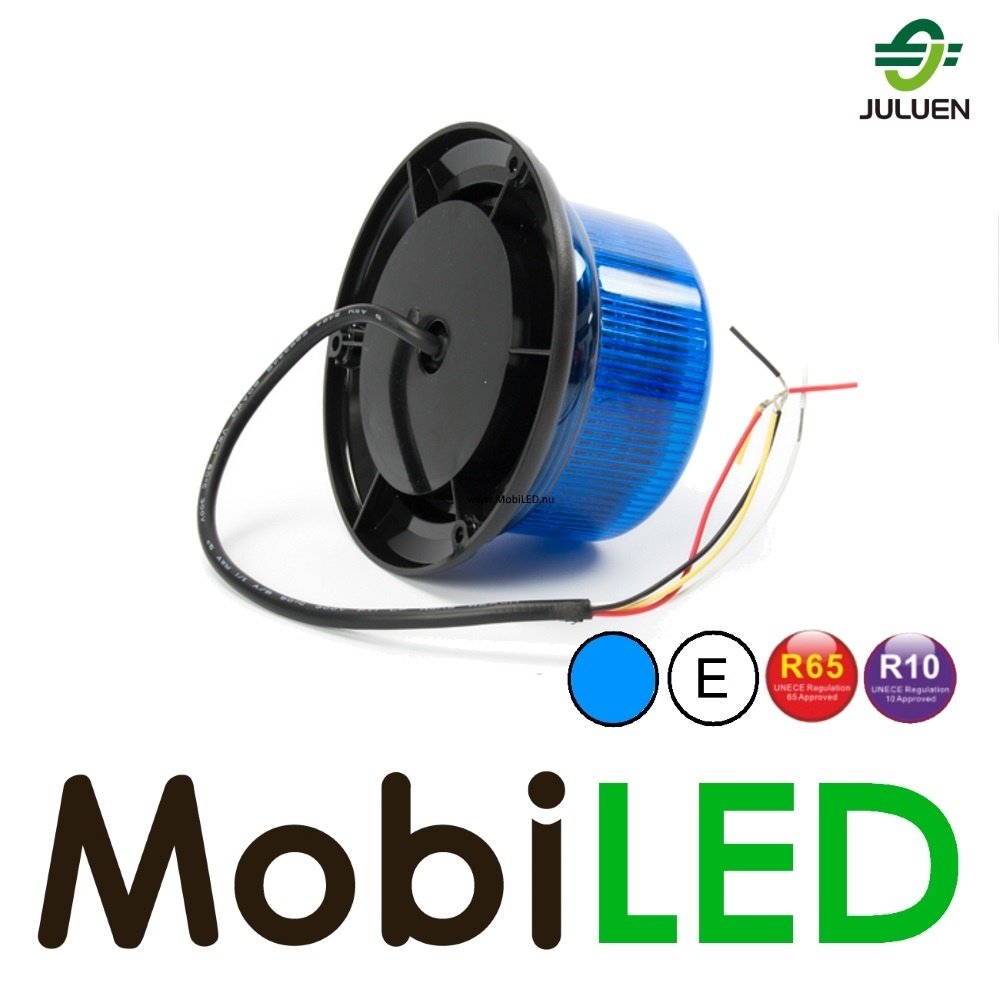

Connection diagram:

• Red: plus
• Black: mass
• White: day and night mode
• Yellow: Set flash pattern, sync and flash alternating flash at the same time
